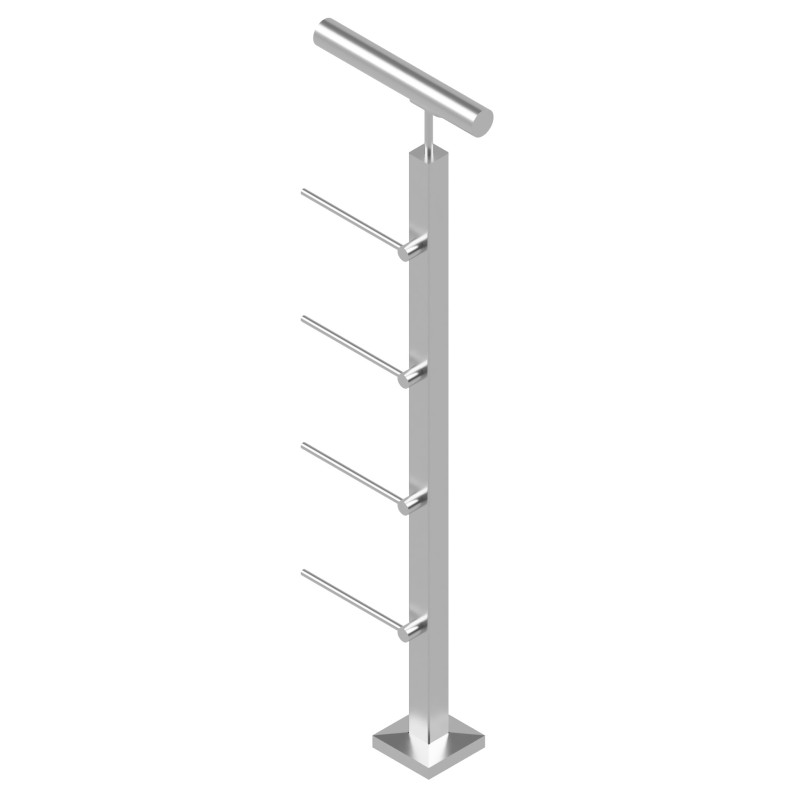

Rod railing system for a flat surface, End Left - 42.4

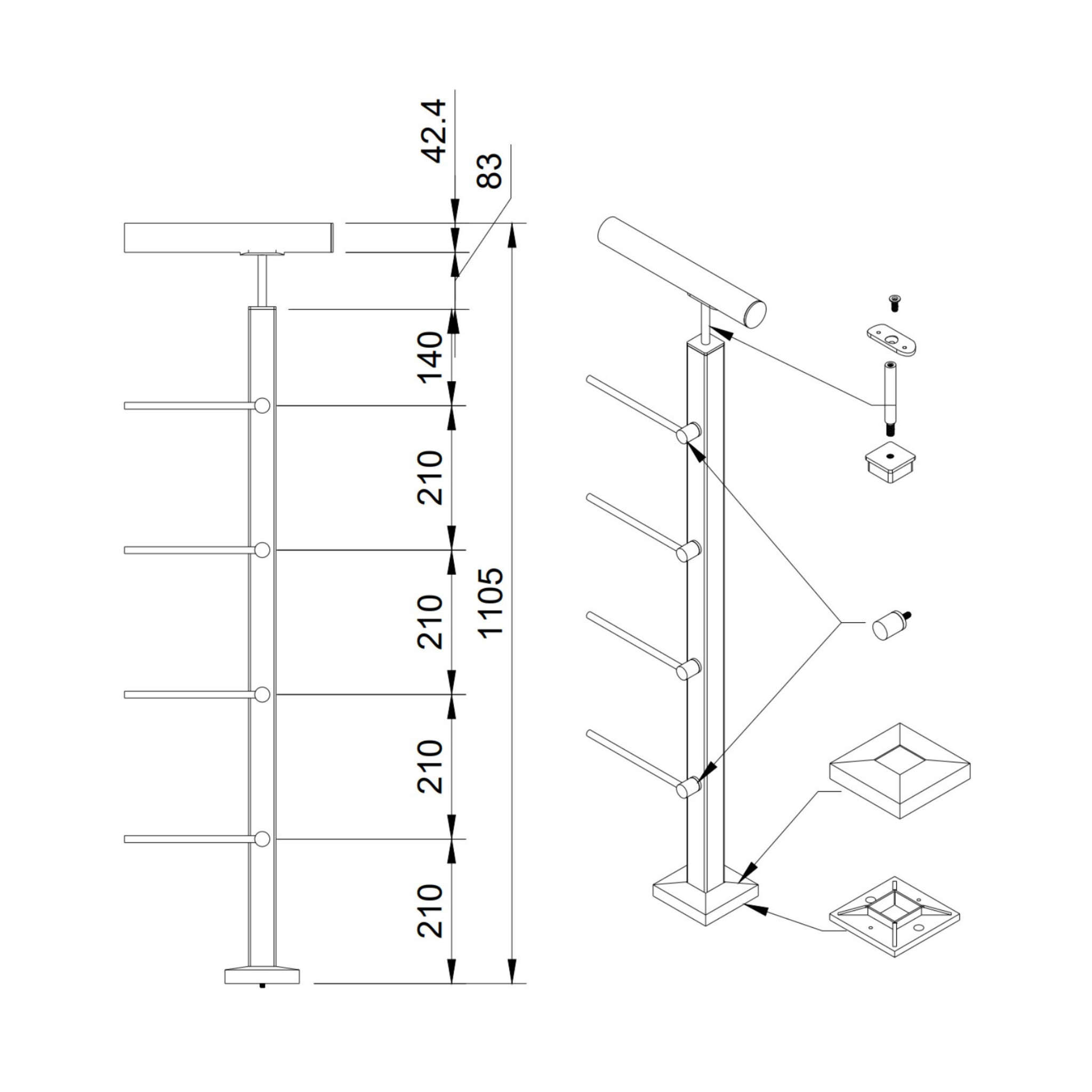

The Strofix rod railing system for a flat surface, End Left - 42.4 is a complete end (terminal) railing post supplied with 4 crossbar holders for the horizontal rod (bar) infill. It has a 40 × 40 × 2 mm post standing H=1060 mm on a 108 × 108 mm base, with its top configured for a round Ø42.4 mm tube handrail, and is made for flat-surface (level) mounting. Available in AISI 304 or AISI 316 grade with a satin finish.

This is the end configuration: the post sits at the left-hand end of a straight railing run, carrying 4 crossbar holders to secure the horizontal rods where the rod (bar) balustrade terminates. The "End Left" designation places the post at the left end of the run; a matching "End Right" version is available for the opposite end. The "42.4" designation is the version for the round Ø42.4 mm tube handrail; a "Flat" version for the flat 40 × 40 handrail is also available. AISI 304 suits interior and standard exterior installations; AISI 316 contains added molybdenum for higher resistance to chlorides and salt air, making it the choice for coastal and high-humidity environments. It is a finished post system from the Strofix For Rod railing range, for level surfaces rather than stairs.

Use cases:

• End post for a rod (bar) infill railing on a flat surface
• Left-hand termination of horizontal rod railings topped with a round Ø42.4 handrail
• Level-ground rod railing runs, not stairs
• Residential and commercial rod balustrades
• Coastal and poolside rod railings (AISI 316 recommended)

FAQ

What is included?

The system is an end (terminal) railing post supplied with 4 crossbar holders for the horizontal rods.

What surface is it for?

It is made for flat, level surfaces — not stairs. A separate For stairs version is available.

Which end of the railing does it go on?

It is the left-hand end post; a matching "End Right" version is available for the opposite end of the run.

What handrail does the "42.4" version take?

Its top is configured for a round Ø42.4 mm tube handrail. A "Flat" version for the flat 40 × 40 handrail is also available.

What are the post dimensions?

The post is 40 × 40 × 2 mm, H=1060 mm, on a 108 × 108 mm base.

What is the difference between AISI 304 and AISI 316?

AISI 316 contains added molybdenum for higher resistance to chlorides and salt air. Choose AISI 316 for coastal, pool, and high-humidity installations; AISI 304 is sufficient for interiors and standard outdoor conditions.

About Rod Railing Posts

A rod railing post is a stainless-steel vertical upright designed to carry horizontal rod crossbars between posts, forming a balustrade with an open, linear infill. The rods pass through pre-drilled holes or fittings in the post, and a handrail sits on top, creating a lightweight barrier that maintains visibility while providing fall protection on balconies, terraces, mezzanines and staircases.

Strofix supplies rod railing post systems in four configurations — flat surface with flat (40×40 mm) post, flat surface with round (Ø42.4 mm) post, stairs with flat post, and stairs with round post — all in AISI 304 or AISI 316 stainless steel with a satin finish.

A standard fitting accessory for the rod-to-post connection is also available separately. The correct system depends on installation surface (flat or stairs), post profile (flat or round) and the required steel grade.
