Rod railing system for a flat surface, End Right - Flat

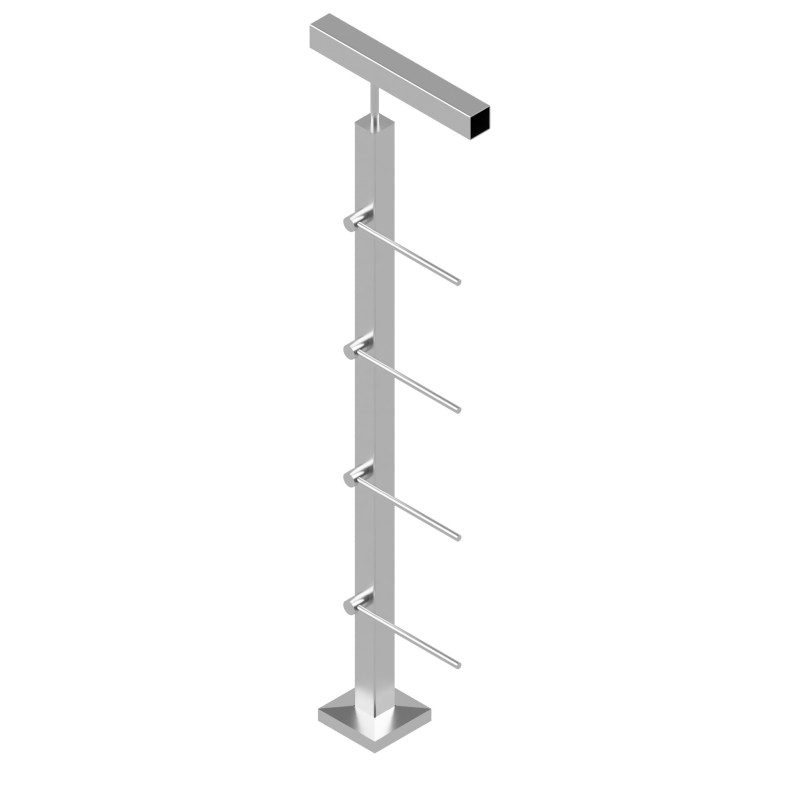

The Strofix rod railing system for a flat surface, End Right - Flat is a complete end (terminal) railing post supplied with 4 crossbar holders for the horizontal rod (bar) infill. It has a 40 × 40 × 2 mm post standing H=1060 mm on a 108 × 108 mm base, and is made for flat-surface (level) mounting. Available in AISI 304 or AISI 316 grade with a satin finish.

This is the end configuration: the post sits at the right-hand end of a straight railing run, carrying 4 crossbar holders to secure the horizontal rods where the rod (bar) balustrade terminates. The "End Right" designation places the post at the right end of the run; a matching "End Left" version is available for the opposite end. The "Flat" designation is the 40 × 40 profile version; a "42.4" version with the round Ø42.4 mm tube is also available. AISI 304 suits interior and standard exterior installations; AISI 316 contains added molybdenum for higher resistance to chlorides and salt air, making it the choice for coastal and high-humidity environments. It is a finished post system from the Strofix For Rod railing range, for level surfaces rather than stairs.

Use cases:

• End post for a rod (bar) infill railing on a flat surface
• Right-hand termination of horizontal rod railings on balconies, terraces, and landings
• Level-ground rod railing runs, not stairs
• 40 × 40 profile rod railing on level surfaces
• Coastal and poolside rod railings (AISI 316 recommended)

FAQ

What is included?

The system is an end (terminal) railing post supplied with 4 crossbar holders for the horizontal rods.

What surface is it for?

It is made for flat, level surfaces — not stairs. A separate For stairs version is available.

Which end of the railing does it go on?

It is the right-hand end post; a matching "End Left" version is available for the opposite end of the run.

What is the difference between the "Flat" and "42.4" versions?

"Flat" uses the 40 × 40 profile; "42.4" is the round Ø42.4 mm tube version. Choose to match your railing system.

What are the post dimensions?

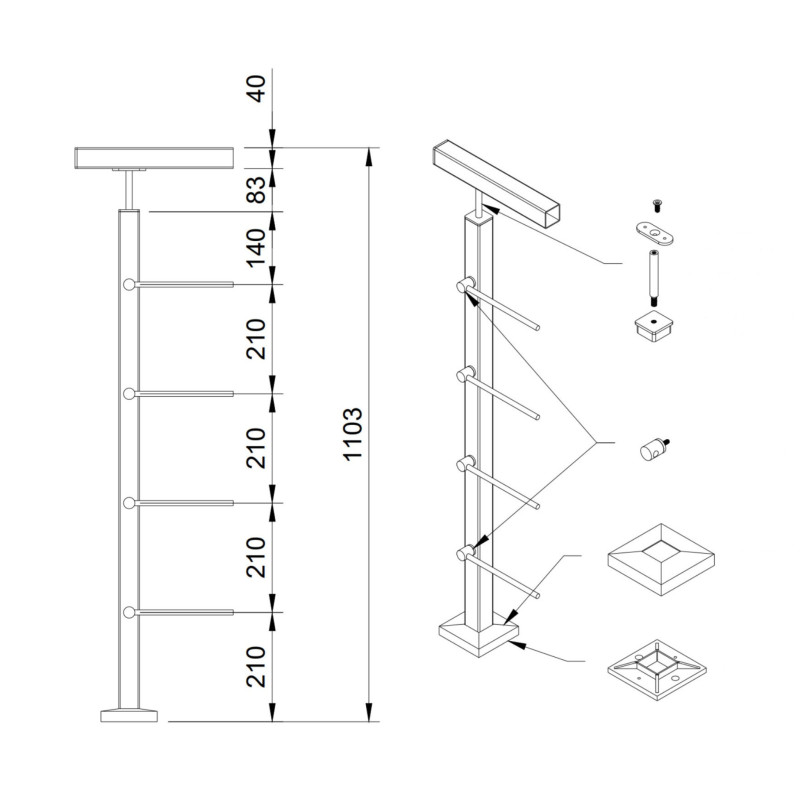

The post is 40 × 40 × 2 mm, H=1060 mm, on a 108 × 108 mm base.

What is the difference between AISI 304 and AISI 316?

AISI 316 contains added molybdenum for higher resistance to chlorides and salt air. Choose AISI 316 for coastal, pool, and high-humidity installations; AISI 304 is sufficient for interiors and standard outdoor conditions.

About Rod Railing Posts

A rod railing post is a stainless-steel vertical upright designed to carry horizontal rod crossbars between posts, forming a balustrade with an open, linear infill. The rods pass through pre-drilled holes or fittings in the post, and a handrail sits on top, creating a lightweight barrier that maintains visibility while providing fall protection on balconies, terraces, mezzanines and staircases.

Strofix supplies rod railing post systems in four configurations — flat surface with flat (40×40 mm) post, flat surface with round (Ø42.4 mm) post, stairs with flat post, and stairs with round post — all in AISI 304 or AISI 316 stainless steel with a satin finish.

A standard fitting accessory for the rod-to-post connection is also available separately. The correct system depends on installation surface (flat or stairs), post profile (flat or round) and the required steel grade.
