Handrail wall support - 70mm, 42.4, Satin

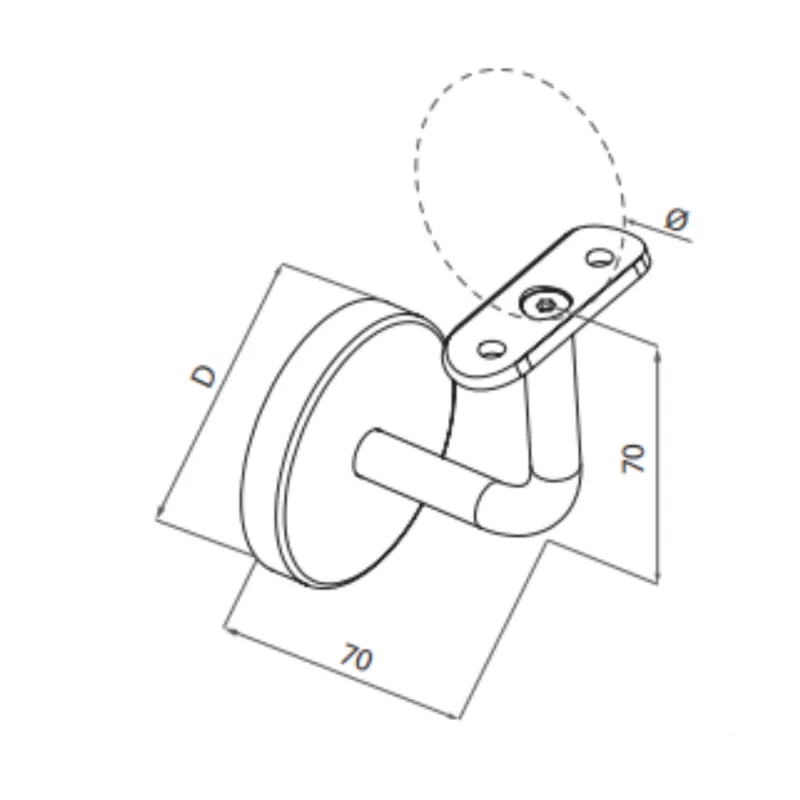

The Strofix handrail wall support 70mm, 42.4 is a stainless-steel wall-mounted bracket that supports a round handrail along a wall. It is secured with three screws to a ø70 mm base and includes a cover that conceals the fixings, with a curved saddle shaped for round ø42.4 mm pipe. Manufactured from AISI 304 stainless steel with a satin finish. This is a fixed (non-adjustable) support.

This bracket has the largest round base in the wall support range at ø70 mm, and uniquely includes a snap-on cover that hides the three fixing screws for a clean, finished appearance. It carries a continuous round handrail along a wall – for example, beside a staircase or corridor. The curved saddle cradles the standard ø42.4 mm tube. As a fixed support, it holds a defined geometry suited to level (horizontal) handrail runs, combining a secure three-screw fixing with a concealed-fixing aesthetic.

Use cases:

• Supporting a round ø42.4 mm handrail along a wall with concealed fixings
• Wall-mounted round handrail where a clean cover over the screws is preferred
• Continuous round wall handrail support beside staircases and corridors
• Secure three-screw ø70 mm wall fixing with a finished cover
• Stainless-steel wall handrail support with the largest round base in the range

FAQ

What is distinctive about this support?

It has the largest round base (ø70 mm) in the wall support range and includes a cover that conceals the three fixing screws, giving a cleaner finished appearance than the exposed-screw supports.

How is it fixed to the wall?

With three screws to the ø70 mm base, then the cover is fitted over the fixings. Use appropriate wall fixings for the substrate and the handrail load.

What handrail pipe does it fit?

A round ø42.4 mm tube, via its curved saddle.

Is it adjustable?

No. This is a fixed support, suited to level (horizontal) handrail runs.

How does it compare to the ø60 mm 42.4 support?

Both are fixed three-screw AISI 304 satin supports with a curved ø42.4 saddle. This ø70 mm version has a larger base and a concealing cover; the ø60 mm versions have a smaller base and exposed fixings at a lower price.

What steel grade is used?

AISI 304 stainless steel with a satin finish.
