Handrail wall support - 60mm, 42.4, Satin

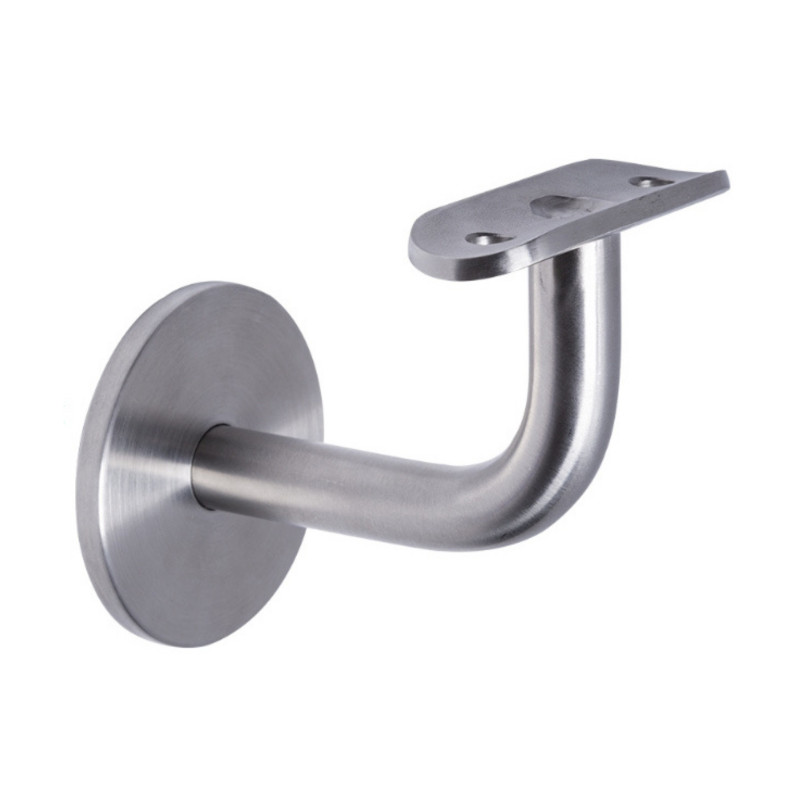

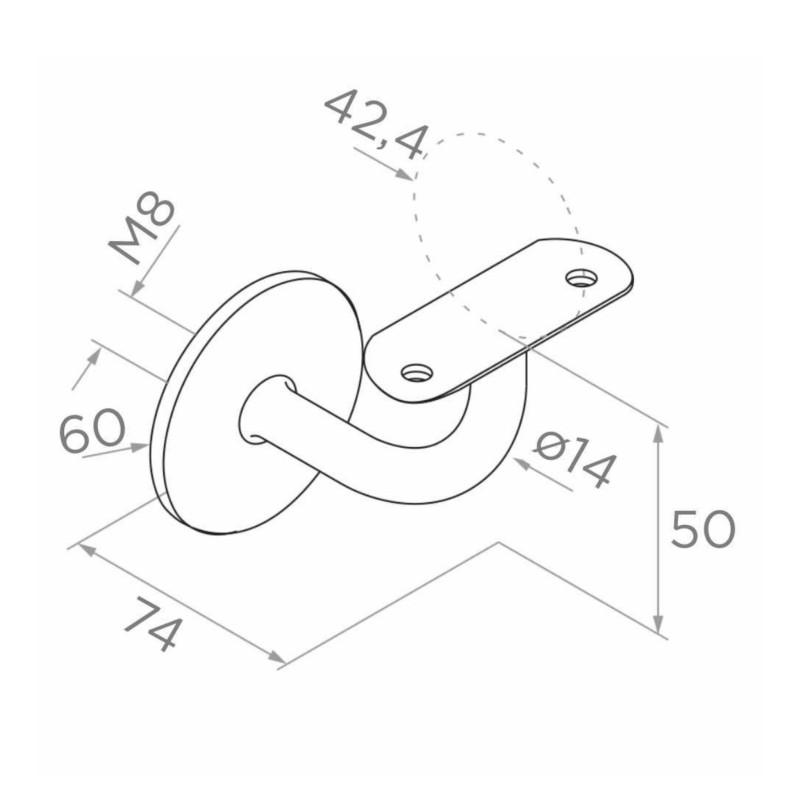

The Strofix handrail wall support 60mm, 42.4 (central screw) is a stainless-steel wall-mounted bracket that supports a round handrail along a wall. It is secured with a single central M8 screw to a ø60 mm base, and has a curved saddle shaped for round ø42.4 mm pipe. Manufactured from AISI 304 stainless steel with a satin finish. This is a fixed (non-adjustable) support.

This is the central-screw, round-pipe version of the ø60 mm wall support. It uses a single concealed central fixing rather than three exposed screws, giving a cleaner face with no visible screw heads on the base, and its curved saddle cradles the standard ø42.4 mm tube. It carries a continuous round handrail along a wall — for example, beside a staircase or corridor. As a fixed support, it holds a defined geometry suited to level (horizontal) handrail runs.

Use cases:

• Supporting a round ø42.4 mm handrail along a wall with a single central fixing
• Wall-mounted round handrail where a clean base with no visible screws is preferred

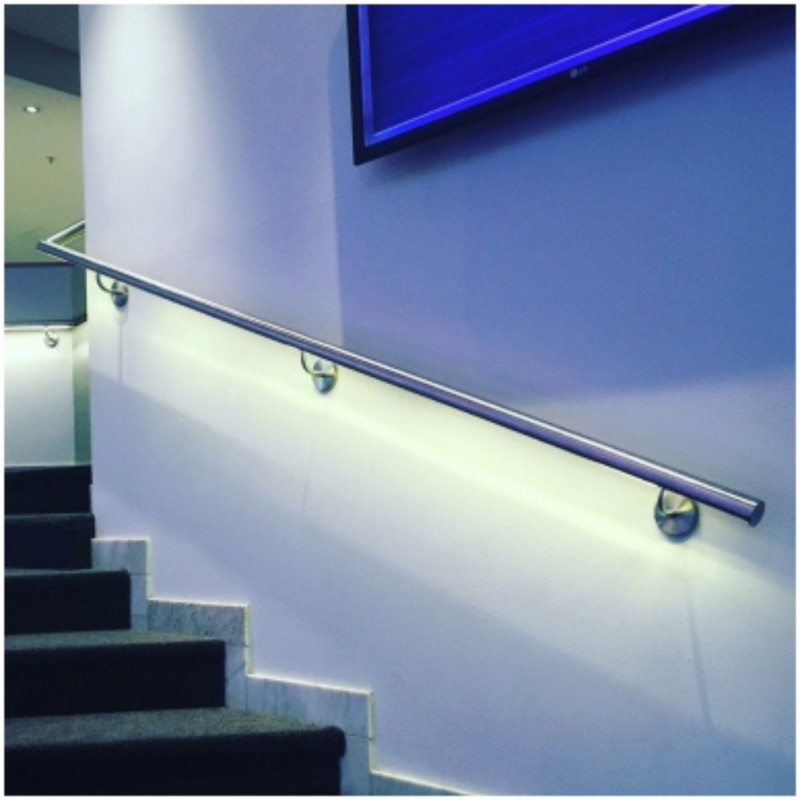

• Continuous round wall handrail support beside staircases and corridors
• Fixed curved-saddle ø60 mm wall handrail bracket with concealed central fixing
• Stainless-steel wall handrail support for round tube

FAQ

How does this differ from the three-screw 60mm 42.4 support?

Both are ø60 mm AISI 304 satin fixed wall supports with a curved ø42.4 saddle. This version uses a single central M8 screw (cleaner face, no visible screw heads); the three-screw version (SKU LTW-460) uses three screws at a lower price.

How is it fixed to the wall?

With a single central M8 screw. Use appropriate wall fixings for the substrate and the handrail load.

What handrail pipe does it fit?

A round ø42.4 mm tube, via its curved saddle.

Is it adjustable?

No. This is a fixed support, suited to level (horizontal) handrail runs.

What steel grade is used?

AISI 304 stainless steel with a satin finish.
