Handrail wall support - 60mm, 42.4, Polished

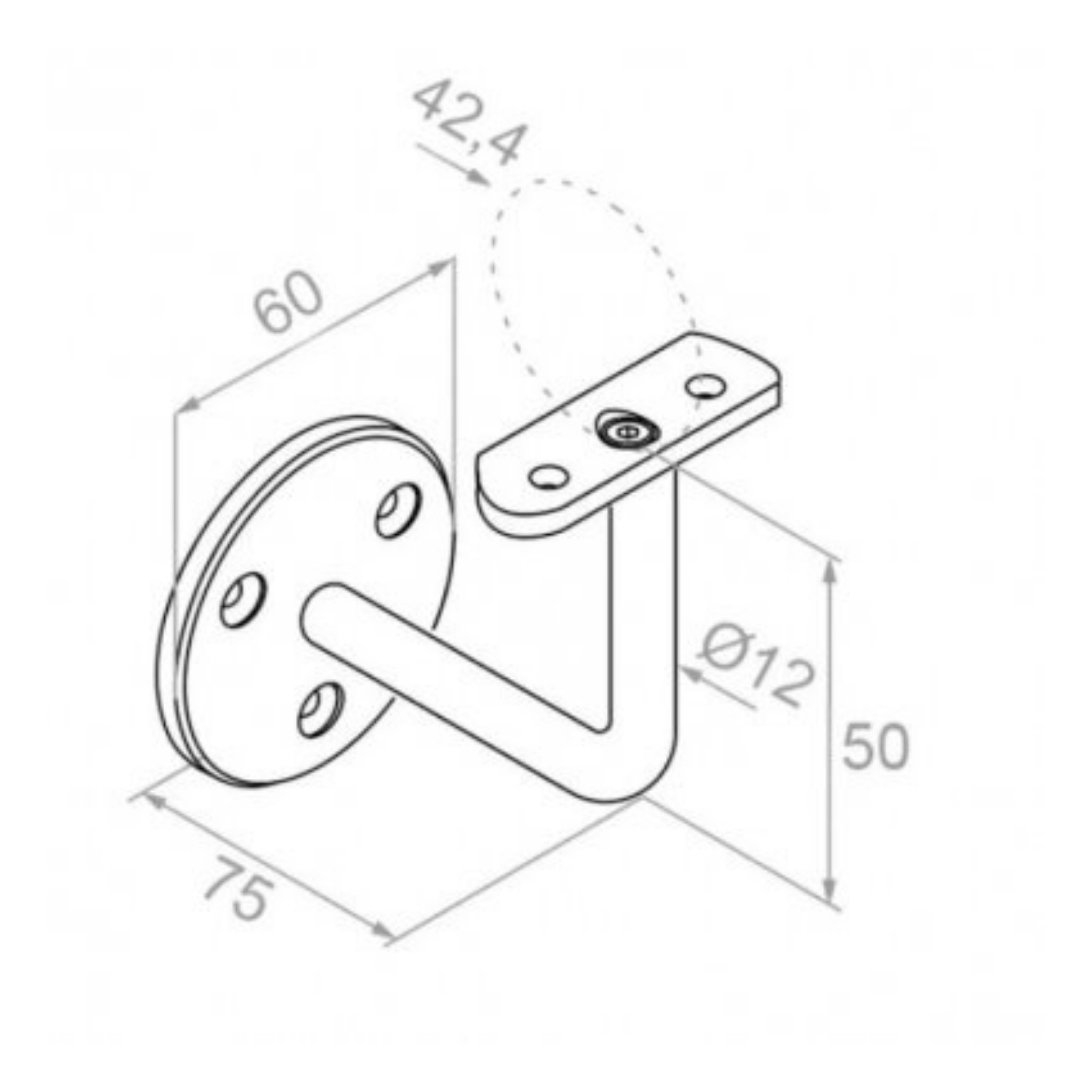

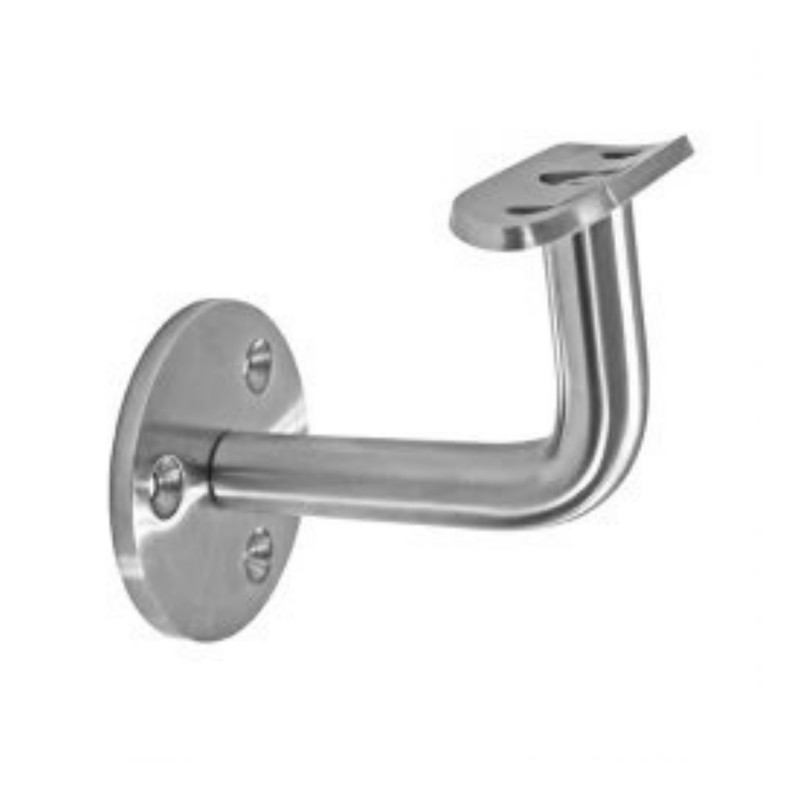

The Strofix handrail wall support 60mm, 42.4, polished (L75, H50) is a stainless-steel wall-mounted bracket that supports a round handrail along a wall. It is secured with three screws to a ø60 mm base, measures 75 mm long and 50 mm high (L = 75 mm, H = 50 mm), and has a curved saddle shaped for round ø42.4 mm pipe. Manufactured from AISI 304 stainless steel with a polished (mirror) finish. This is a fixed (non-adjustable) support.

This is the polished-finish version of the ø60 mm 42.4 wall support (L75, H50). It is identical in form and function to the satin version but has a mirror-polished surface, suited to installations where a bright, reflective finish is preferred to match polished handrail tube and fittings. It carries a continuous round handrail along a wall — for example, beside a staircase or corridor — holding the rail at a defined standoff. The three-screw ø60 mm base provides a secure, stable fixing.

Use cases:

• Supporting a round ø42.4 mm handrail along a wall with a mirror-polished finish
• Polished-finish handrail installations matching polished rail and fittings
• Continuous round wall handrail support beside staircases and corridors
• Fixed round-saddle wall handrail bracket in a bright reflective finish
• Stainless-steel polished wall handrail support with a ø60 mm three-screw base

FAQ

How does this differ from the satin version?

Both are ø60 mm three-screw AISI 304 fixed supports (L75, H50) with a curved ø42.4 saddle. This version has a polished (mirror) finish; the satin version has a brushed matte finish at a lower price.

What are the dimensions?

The base is ø60 mm, with a length of 75 mm and a height of 50 mm (L = 75 mm, H = 50 mm).

What handrail pipe does it fit?

A round ø42.4 mm tube, via its curved saddle.

Is it adjustable?

No. This is a fixed support, suited to level (horizontal) handrail runs.

What steel grade and finish are used?

AISI 304 stainless steel with a polished (mirror) finish.

How is it fixed to the wall?

With three screws to the ø60 mm base. Use appropriate wall fixings for the substrate and the handrail load.
