Glass adaptor D60, SS, satin

The Strofix D60 glass adaptor is a stainless-steel point fixing used to mount 8–21.52 mm glass panels close to flat surfaces in balustrades, façades, and architectural glazing. Available in AISI 304 or AISI 316 grade with a fixed 8 mm spacer, satin finish, and a Ø60 mm cover retained by a visible face screw.

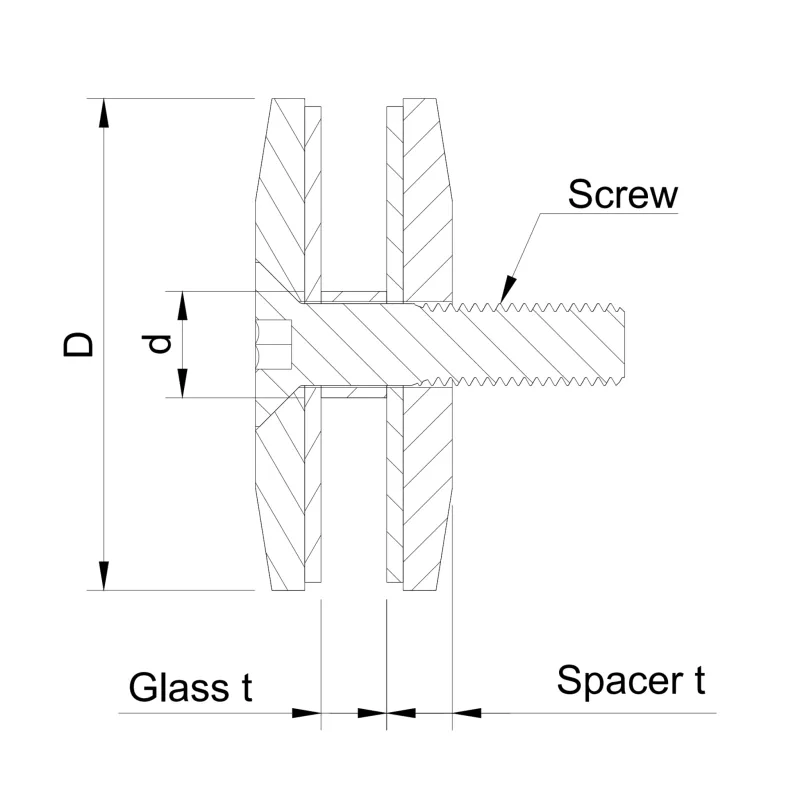

The 8 mm un-threaded spacer creates a minimal wall offset, and the Ø60 mm cover — larger than the D30 family — gives the fixing a more substantial visual presence suited to feature glazing and architectural façades. Each adaptor secures the glass through a single Ø14 mm pre-drilled hole, with a 13 mm inner bushing diameter, and is clamped by an M10 × 45 mm stainless-steel countersunk screw to DIN 7991. AISI 304 suits interior and standard exterior installations; AISI 316 contains added molybdenum for higher resistance to chlorides and salt air, making it the correct choice for coastal and high-humidity environments.

The satin finish reduces visible fingerprints and micro-scratches compared to polished stainless steel and suits architectural glazing where a clean, neutral look is required.

Use cases:

• Architectural glass façades and curtain wall point-fixed panels
• Balustrades with thick toughened or laminated glass up to 21.52 mm
• Glass canopies, entrance awnings, and porte-cochères
• Pool fencing and seafront balustrades (AISI 316 recommended)
• Full-height glass partitions and atrium walls in commercial interiors
• Feature glazing where a larger visible fixing is part of the design language

FAQ:

What glass thickness does this adaptor support?

The D60 is suitable for glass panels from 8 mm to 21.52 mm thick, covering standard toughened glass and thicker structural laminated glass buildups used in façades, canopies, and heavy-duty balustrades.

What size hole must be drilled in the glass?

A minimum Ø14 mm hole is required in the glass. The adaptor uses a 13 mm inner bushing diameter for the M10 screw. The hole must be pre-drilled by the glass supplier before tempering — toughened glass cannot be cut or drilled after heat treatment.

What is the difference between AISI 304 and AISI 316?

AISI 316 contains molybdenum, which provides higher resistance to chlorides and salt air. Specify AISI 316 for coastal, pool, and high-humidity installations. AISI 304 is sufficient for interior use and standard outdoor conditions inland.

How does the D60 differ from the D30?

The D60 has a Ø60 mm cover (versus Ø30 mm on the D30) and uses an M10 × 45 mm DIN 7991 countersunk screw with the cover retained by a visible face screw. It supports thicker glass up to 21.52 mm, against 12.76 mm for the standard D30. Choose the D60 when the project calls for a larger visible fixing or heavier glass buildups.

Is the spacer height adjustable?

No. This SKU ships with a fixed 8 mm un-threaded spacer, which sets a minimal standoff distance between the wall and the glass. The spacer cannot be adjusted after installation — a different D60 variant should be used if a larger offset is required.

Can I install it myself?

Yes, with basic tools: a drill with the correct bit for your wall material, a torque wrench, an M10-rated wall anchor matched to the substrate, and pre-drilled glass. Thick laminated glass panels are heavier than standard toughened glass and should be handled with two people. Follow the glass supplier's recommended torque to avoid cracking.

About glass adaptors

A glass adaptor is a stainless-steel point fixing that attaches a glass panel to a supporting structure through a drilled hole in the glass. It transfers load from the panel to the substrate while keeping visible hardware to a minimum, leaving the glass as the main visual element in balustrades, façades, partitions, canopies, and shower enclosures.

Strofix supplies round glass adaptors from Ø12 mm up to Ø70 mm (including D30, D38, D40, D50, D60 and D70) plus square 38×38 and 40×40 versions, in AISI 201, AISI 304 and AISI 316 stainless steel, with satin, polished or painted finishes and a broad range of spacer heights. The right adaptor depends on glass thickness, wall-to-glass offset, environment and the type of supporting surface.

Glass adaptors are essential components used to securely connect glass panels to supporting structures while maintaining a clean, modern appearance. They are widely applied in glass railings, partitions, façades, canopies, and other architectural systems where both stability and design matter. By creating a reliable fixing point between glass and metal or wall-mounted surfaces, glass adaptors help distribute load evenly and ensure structural safety without compromising transparency.
