SKU PS-40T.P0D86-4S

Glass adaptor D40, M8/M10 × 45 mm, SS, satin

Brand Strofix
€8.45 Tax excluded
€10.22 Tax included
Tax included
Quantity
Glass adaptor size ø 40mm
Spacer thickness 6mm 10mm
Steel grade AISI304
Surface finish Satin
Mounting surface type Flat
Screw size M8 M10
Screw length 45mm
Glass thickness 4 - 21,52mm
Minimum hole in glass ø 12mm ø 15mm
Adjustable No
Cover type Flat
Spacer hole type Without thread

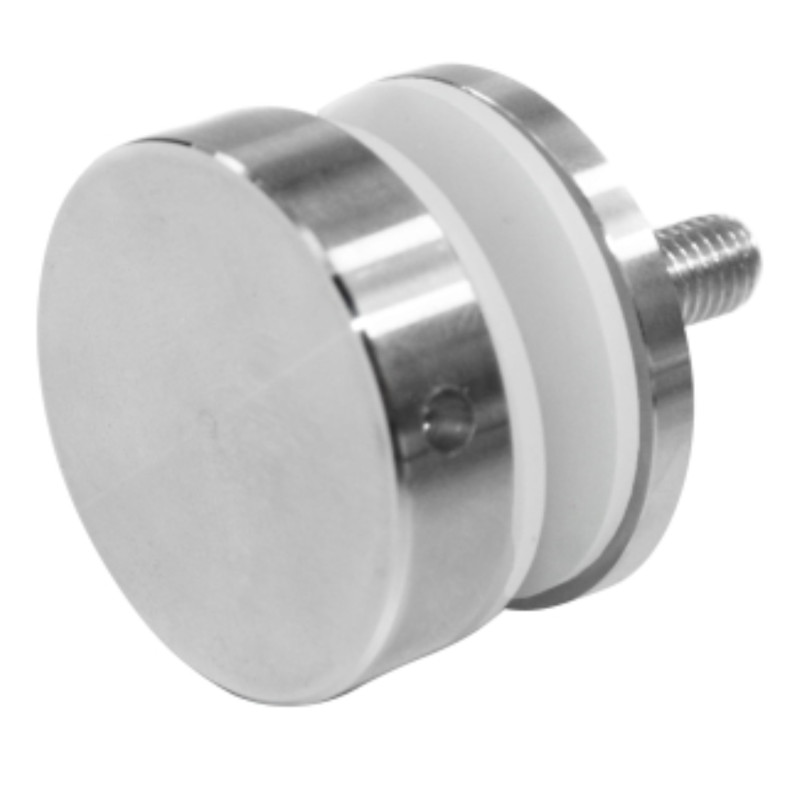

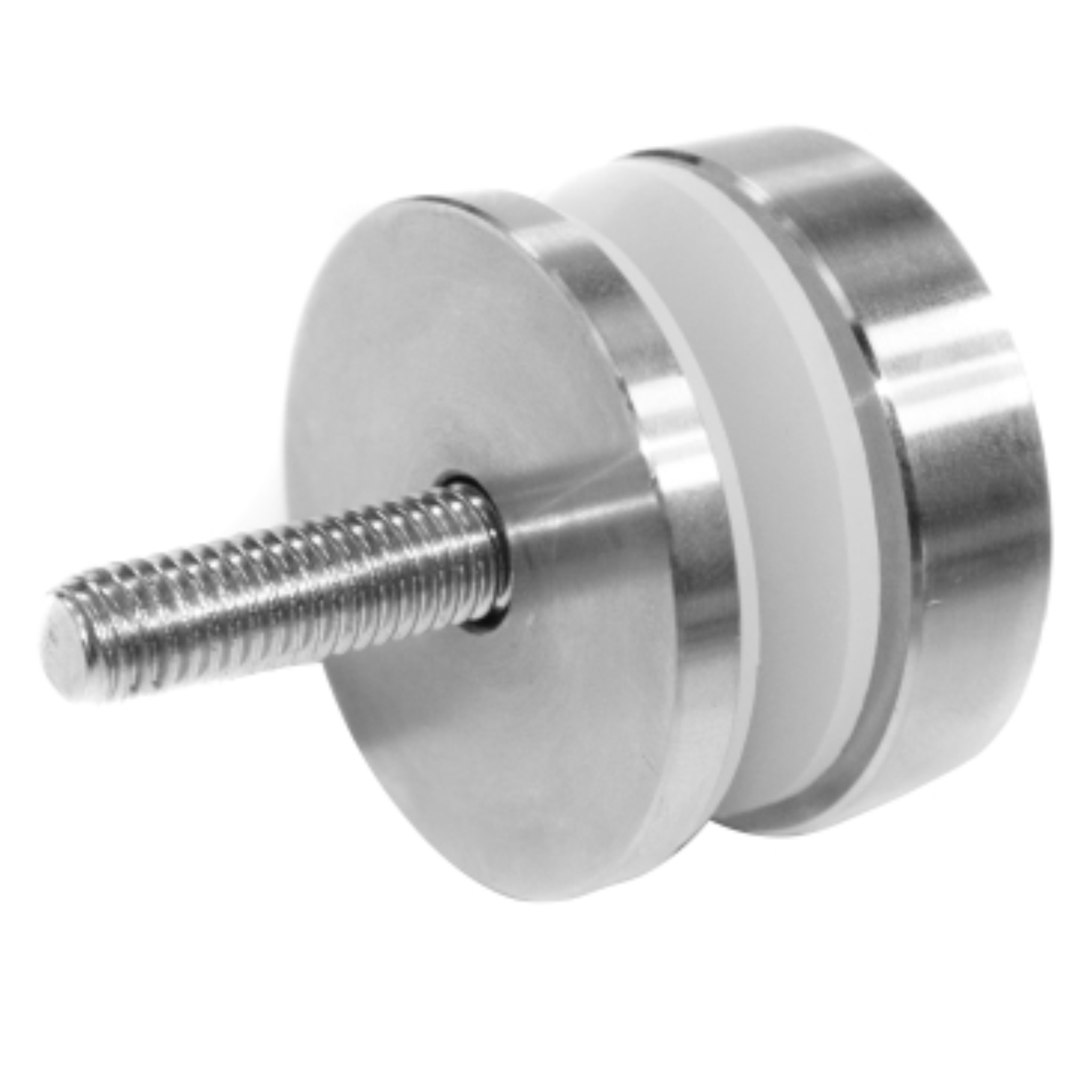

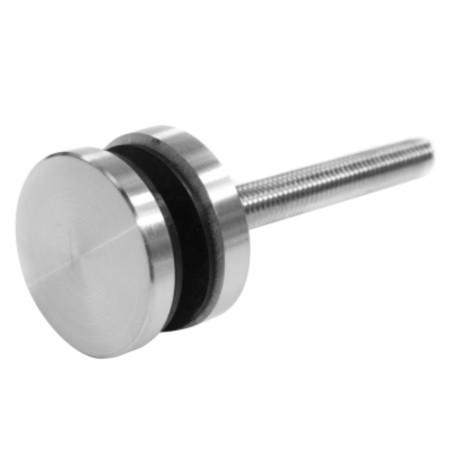

The Strofix D40 glass adaptor with a 45 mm screw is a stainless-steel point fixing used to mount 4–21.52 mm glass panels close to flat surfaces in balustrades, façades, and architectural glazing. Supplied in AISI 304 with a satin finish and a Ø40 mm flat cover, in two versions: an M8 × 45 mm screw with a 6 mm spacer, or an M10 × 45 mm screw with a 10 mm spacer.

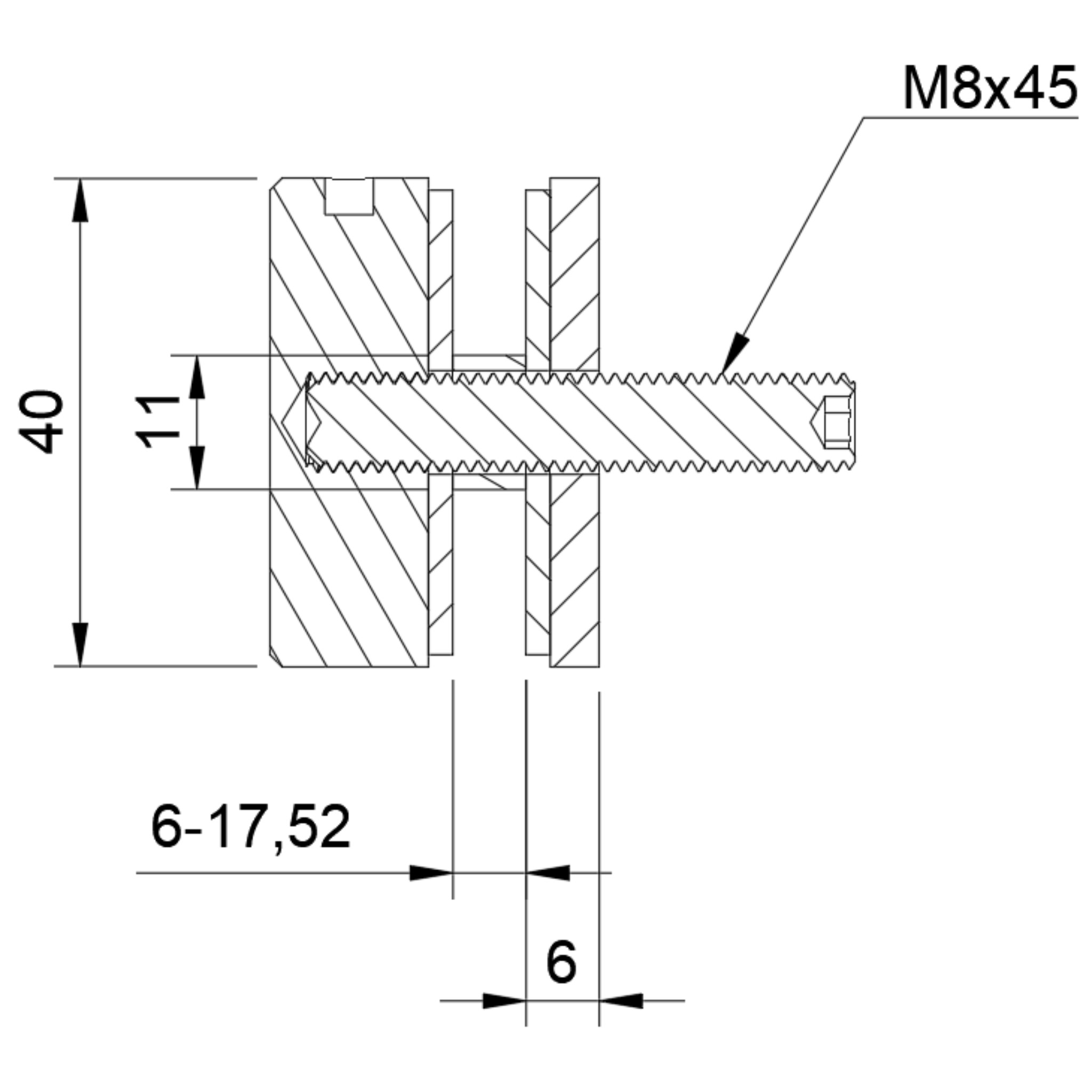

The un-threaded spacer creates a short wall offset, while the wide glass thickness range (4 mm to 21.52 mm) covers everything from thin single-pane glass to thick structural laminated buildups, making the D40 a versatile mid-size adaptor between the D30 and D60 families. The M8 version secures the glass through a Ø12 mm pre-drilled hole with an 11 mm inner bushing; the M10 version needs a Ø15 mm hole and has a 14 mm bushing. The Ø40 mm flat cover gives the fixing a moderate visual presence – larger than the D30 cap and smaller than the D60 – suited to mid-format point-fixed glazing. For insulated or clad walls, the same adaptor is available with a 100 mm screw. AISI 304 is the standard chromium-nickel stainless steel and provides reliable corrosion resistance for indoor installations and standard protected outdoor environments away from coastal conditions.

The satin finish reduces visible fingerprints and micro-scratches compared to polished stainless steel and suits architectural glazing where a clean, neutral look is required.

Use cases:

  • Balustrades with toughened or laminated glass where a short wall offset is required
  • Glass façades and curtain wall infill panels in mid-size formats
  • Full-height glass partitions in offices, retail, and hospitality spaces
  • Stair side glazing and mezzanine edge protection
  • Glass canopies and entrance awnings on prepared substrates
  • Shower enclosures and screen panels with thicker glass

FAQ:

What glass thickness does this adaptor support?

The D40 is suitable for glass panels from 4 mm to 21.52 mm thick. This wide range covers thin single-pane glass, standard toughened glass, and thicker structural laminated buildups commonly used in balustrades and façades.

What size hole must be drilled in the glass?

A minimum Ø12 mm hole for the M8 version (11 mm inner bushing) or Ø15 mm for the M10 version (14 mm inner bushing). The hole must be pre-drilled by the glass supplier before tempering – toughened glass cannot be cut or drilled after heat treatment.

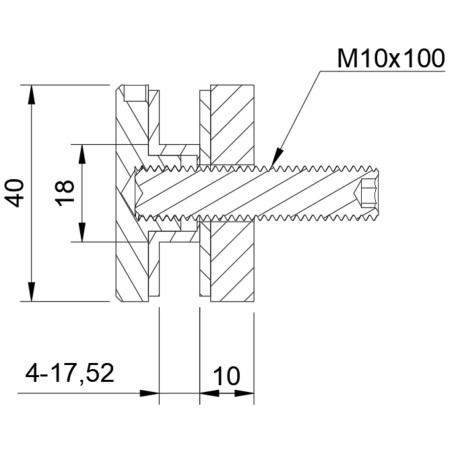

How does this differ from the D40 with a 100 mm screw?

Only in screw length. Both come with an M8 screw and 6 mm spacer or an M10 screw and 10 mm spacer. Choose the 45 mm screw for substrates without thick finish layers; choose the 100 mm screw where it must pass through insulation or cladding.

What stainless steel grade is used?

This SKU is supplied in AISI 304, the standard chromium-nickel stainless steel. AISI 304 provides reliable corrosion resistance for indoor installations and standard protected outdoor environments. For coastal, outdoor pool or chloride-rich locations, a higher-grade stainless steel such as AISI 316 should be specified.

Is the spacer height adjustable?

No. The un-threaded spacer is fixed – 6 mm on the M8 version, 10 mm on the M10 version – and sets the standoff distance between the wall and the glass. It cannot be adjusted after installation – choose a different D40 variant if a larger offset or adjustable spacer is required.

Can I install it myself?

Yes, with basic tools: a drill with the correct bit for your wall material, a torque wrench, a wall anchor rated for the M8 or M10 screw and matched to the substrate, and pre-drilled glass. Thicker laminated glass panels are heavier than standard toughened glass and should be handled with two people. Follow the glass supplier's recommended torque to avoid cracking.

About glass adaptors

A glass adaptor is a stainless-steel point fixing that attaches a glass panel to a supporting structure through a drilled hole in the glass. It transfers load from the panel to the substrate while keeping visible hardware to a minimum, leaving the glass as the main visual element in balustrades, façades, partitions, canopies, and shower enclosures.

Strofix supplies round glass adaptors from Ø12 mm up to Ø70 mm (including D30, D40, D50, D60 and D70) plus a square 40×40 version, in AISI 201, AISI 304 and AISI 316 stainless steel, with satin, polished or painted finishes and a broad range of spacer heights. The right adaptor depends on glass thickness, wall-to-glass offset, environment and the type of supporting surface.

Glass adaptors are essential components used to securely connect glass panels to supporting structures while maintaining a clean, modern appearance. They are widely applied in glass railings, partitions, façades, canopies, and other architectural systems where both stability and design matter. Glass adaptors create a fixing point between the glass and a metal or wall-mounted surface and hold the panel at defined points, keeping the glass visually uninterrupted.
