Glass adaptor D50 spherical, adjustable, with inner thread, SS, satin

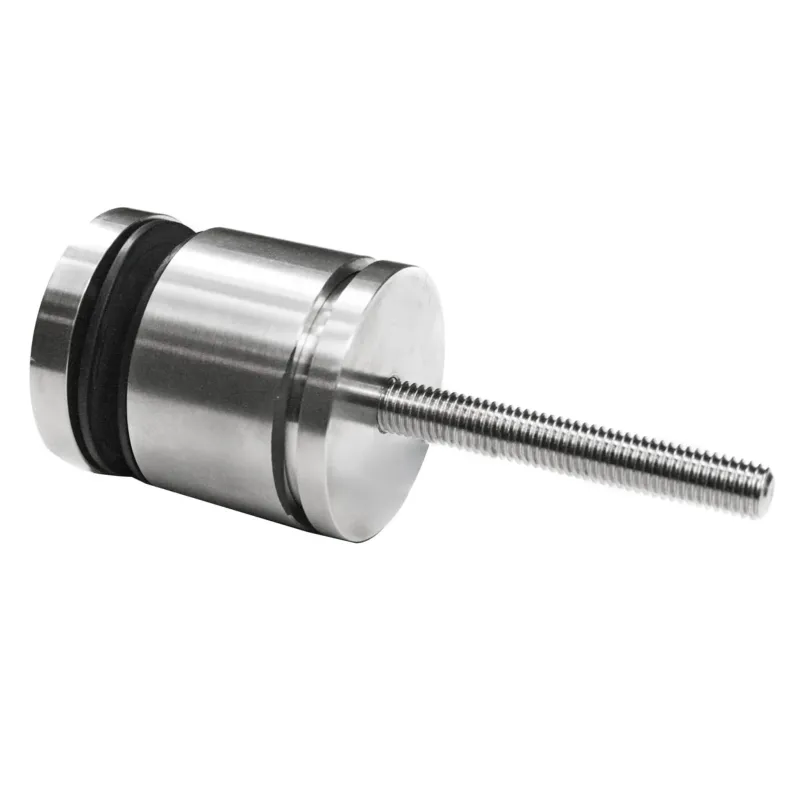

The Strofix D50 spherical adjustable glass adaptor with inner thread is a stainless-steel point fixing used to mount 8–17.52 mm glass panels to flat surfaces in balustrades, façades, canopies, and architectural glazing, with a continuously adjustable spacer that covers a 35–55 mm standoff range and an internally threaded spacer for additional fine-tuning. Available in AISI 304 or AISI 316 grade with a satin finish, a Ø50 mm domed cover, and an M10 × 125 mm screw.

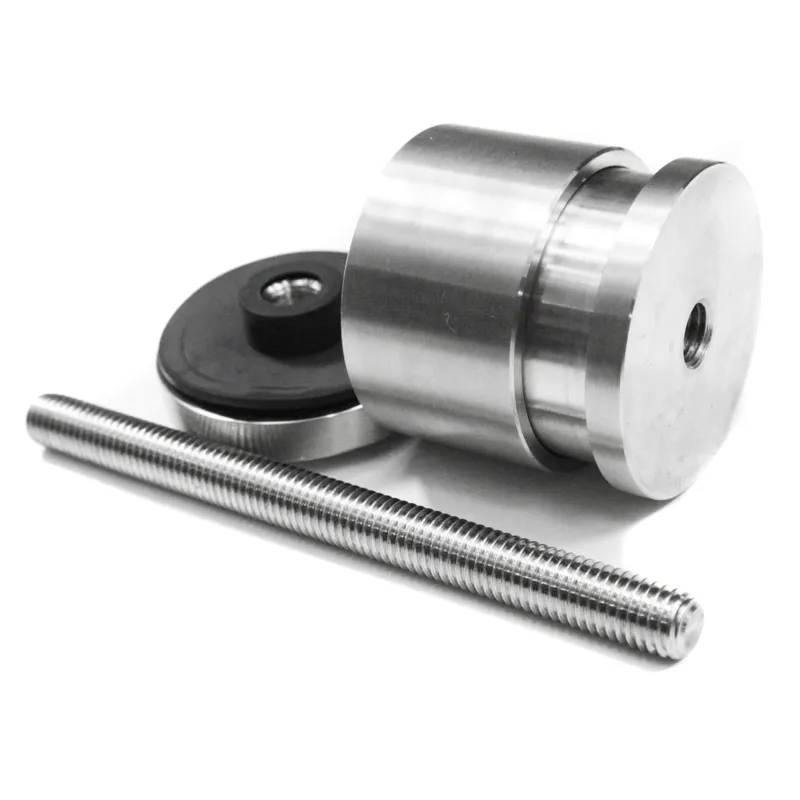

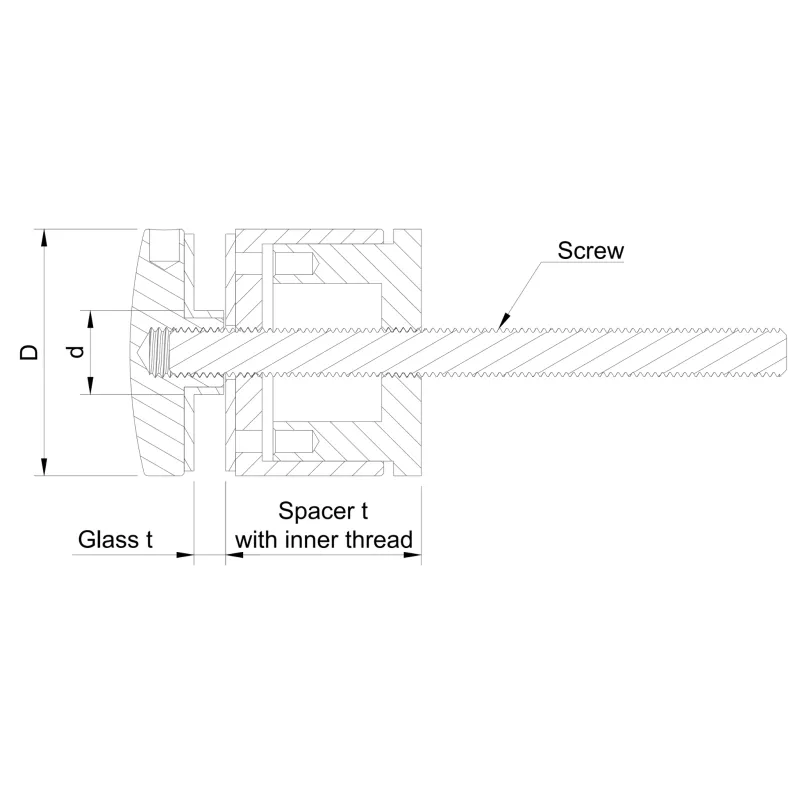

The Ø50 mm spherical (domed) cover gives the fixing a distinctive rounded profile and allows small angular deviations between the glass and the mounting surface, which is useful in façade and canopy applications where perfect planarity cannot be guaranteed. The spacer can be set to any standoff distance from 35 mm to 55 mm during installation, and the M10 inner thread provides additional fine adjustment once the telescoping mechanism is positioned. Each adaptor secures the glass through a single Ø18 mm pre-drilled hole, with a 17 mm inner bushing diameter, and is clamped by an M10 × 125 mm stainless-steel screw — the extended screw length is matched to the deep spacer range and allows anchorage into substrates behind insulation and finish layers. AISI 304 suits interior and standard exterior installations; AISI 316 contains added molybdenum for higher resistance to chlorides and salt air, making it the correct choice for coastal and high-humidity environments.

The satin finish reduces visible fingerprints and micro-scratches compared to polished stainless steel and suits architectural glazing where a clean, neutral look is required.

Use cases:

• Balustrades on insulated or clad walls where the exact wall-to-glass distance falls between 35 and 55 mm
• Architectural glass façades and curtain wall point-fixed panels requiring on-site alignment
• Glass canopies, entrance awnings, and porte-cochères with deep substrate buildups
• Pool fencing and seafront balustrades with deeper standoff (AISI 316 recommended)
• Full-height glass partitions with pronounced shadow gap between substrate and panel
• Retrofit installations where wall dimensions and finish depths vary along the run

FAQ:

What glass thickness does this adaptor support?

The D50 spherical adjustable adaptor is suitable for glass panels from 8 mm to 17.52 mm thick, covering standard toughened glass and most common laminated glass buildups used in balustrades, façades, and canopies.

What standoff range does the adjustable spacer cover?

The spacer is continuously adjustable from 35 mm to 55 mm. The installer sets the telescoping mechanism to the required depth on site, and the M10 inner thread provides additional fine-tuning within that range. This 20 mm adjustment window eliminates the need to stock multiple fixed-spacer variants for wall buildups in the 35–55 mm band.

What does "spherical" mean for this adaptor?

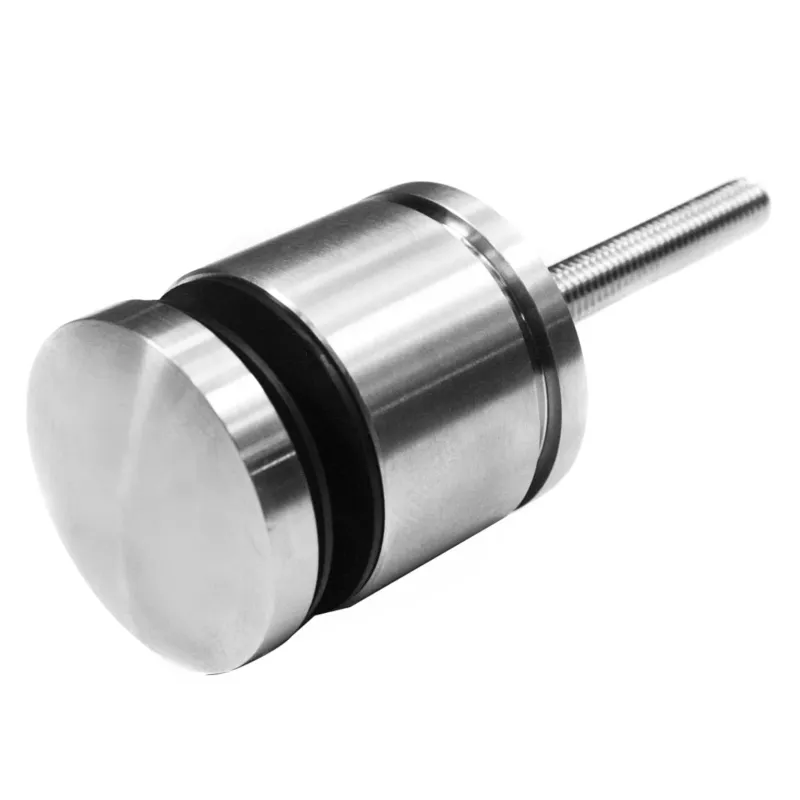

The Ø50 mm cover has a rounded, dome-shaped profile rather than a flat disc. The spherical geometry gives the fixing a distinctive visual signature and allows small angular tolerances between the mounting plane and the glass — useful in façade and canopy applications where perfect alignment is hard to guarantee.

What size hole must be drilled in the glass?

A minimum Ø18 mm hole is required for the M10 screw. The adaptor uses a 17 mm inner bushing diameter. The hole must be pre-drilled by the glass supplier before tempering — toughened glass cannot be cut or drilled after heat treatment.

What is the difference between AISI 304 and AISI 316?

AISI 316 contains molybdenum, which provides higher resistance to chlorides and salt air. Specify AISI 316 for coastal, pool, and high-humidity installations. AISI 304 is sufficient for interior use and standard outdoor conditions inland.

Can I install it myself?

Yes, with basic tools: a drill with the correct bit for your wall material, a torque wrench, an M10-rated wall anchor matched to the substrate, and pre-drilled glass. Set the telescoping spacer to the required depth, fine-tune with the threaded adjustment, then tighten the M10 × 125 mm screw. Glass panels should be handled with two people to avoid cracking.

About adjustable glass adaptors

An adjustable glass adaptor is a stainless-steel point fixing with a variable spacer height that allows the wall-to-glass offset to be fine-tuned during installation. Unlike fixed-spacer adaptors, the adjustable design compensates for uneven substrates, insulation build-ups and alignment tolerances, reducing the need for shimming or rework on site.

Strofix supplies adjustable glass adaptors in three diameters — D35, D40 and D50 — in AISI 304 or AISI 316 stainless steel with a satin finish. Spacer adjustment ranges span from 20–25 mm up to 52–58 mm, and selected variants feature a spherical head with an inner thread for additional angular flexibility.

Choosing between variants depends on the required offset range, glass-panel size and whether the environment calls for AISI 316 corrosion resistance.
