Flush elbow round for pipe 42,4 x 2mm, Polished, 135°

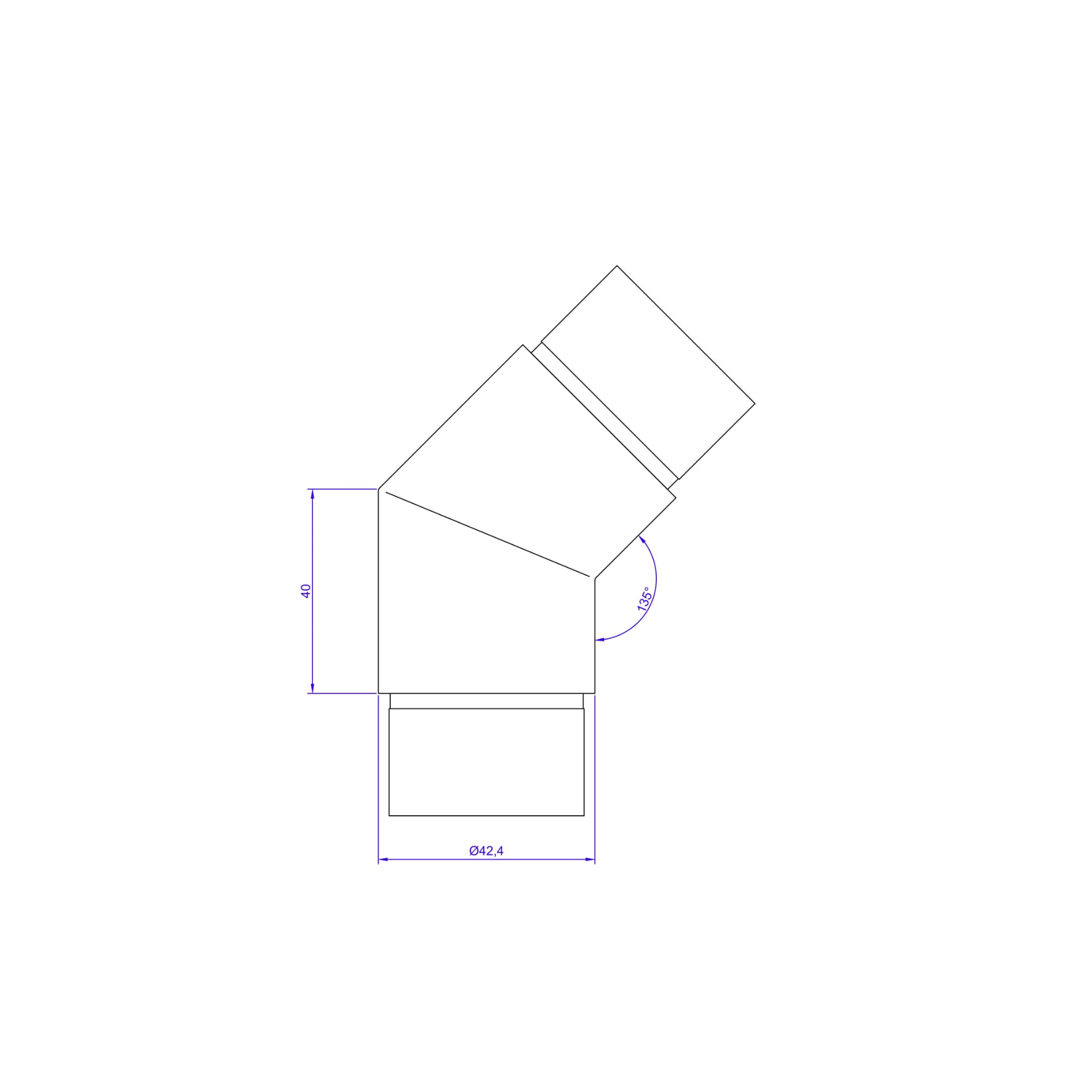

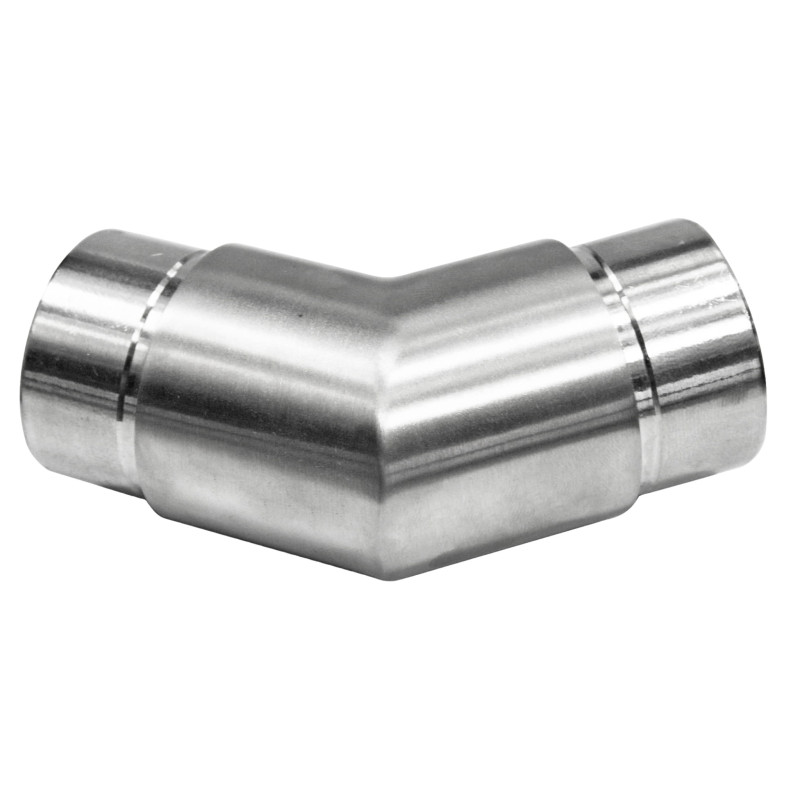

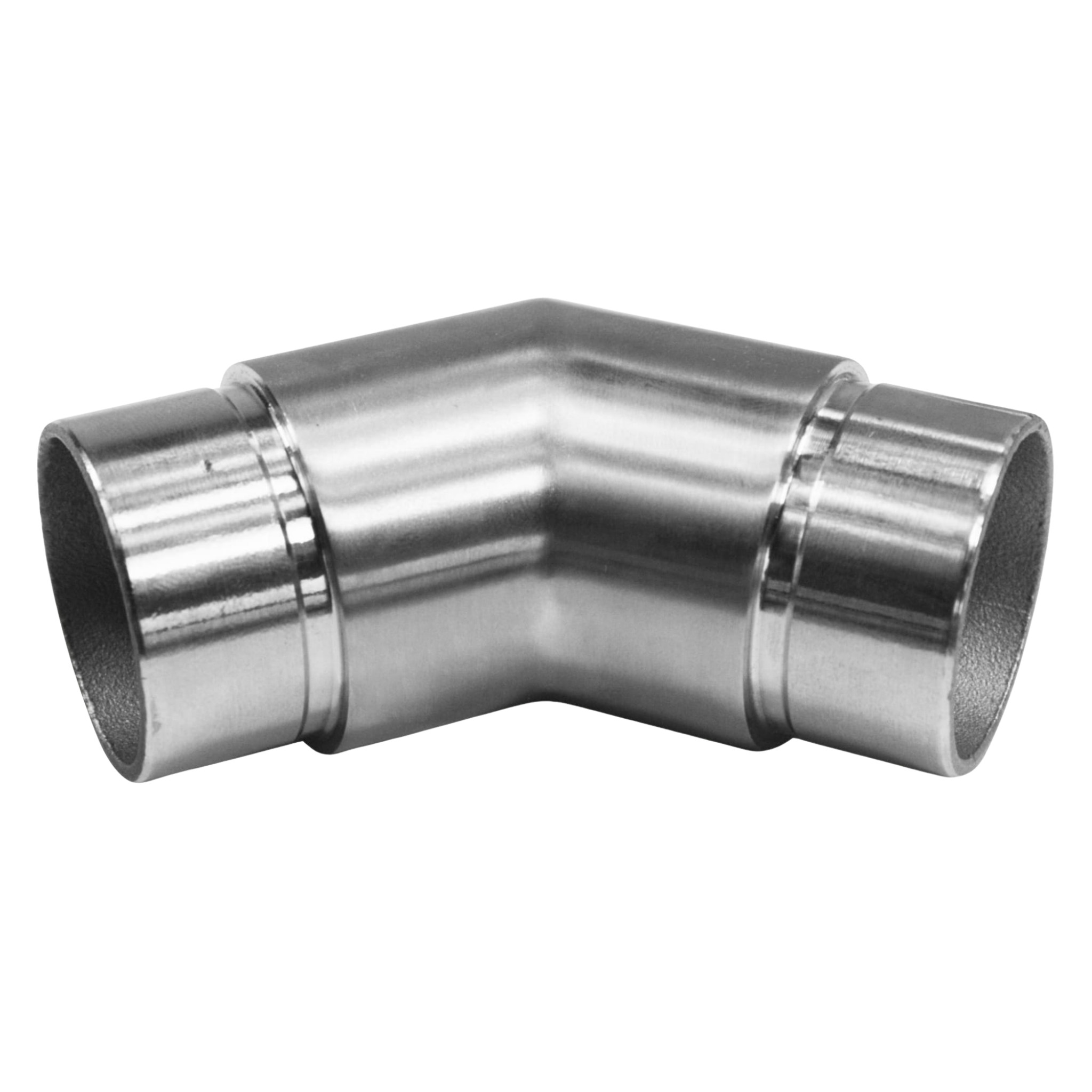

The Strofix flush elbow round for pipe 42,4 × 2mm, Polished, 135° is an AISI 304 stainless-steel fixed 135° flush angle for Ø42.4 × 2 mm round railing tube. It joins two tube sections at a fixed 135° angle, with a flush, weld-free joint on the visible surface. The elbow is 44 mm high and is supplied in a polished (mirror) finish.

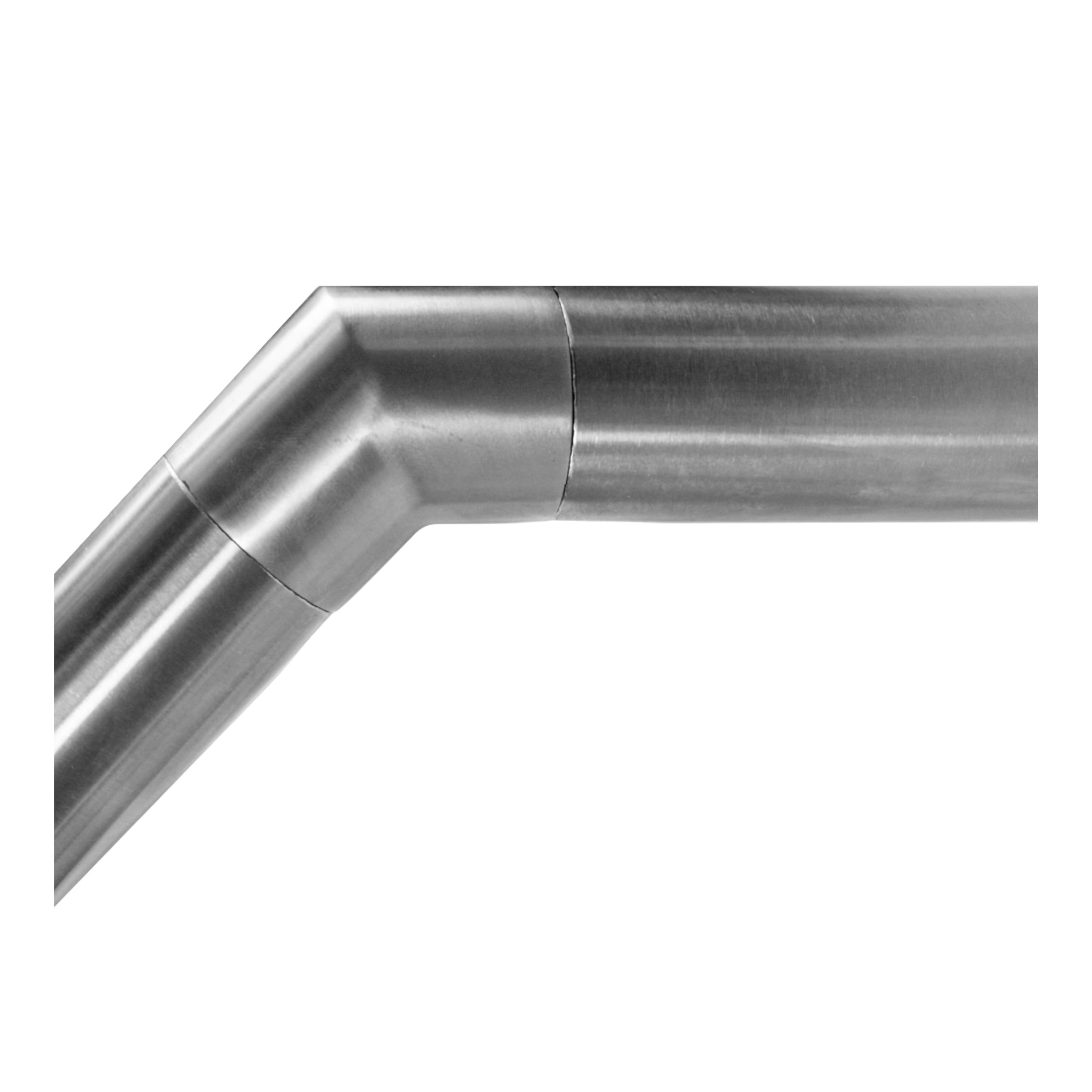

This fixed-angle elbow turns a round-tube rail through an obtuse 135° angle — the angle found on chamfered or splayed corners, bay layouts, and octagonal plans — rather than a square 90° corner. Because the angle is fixed (not adjustable), it gives a clean, repeatable 135° turn. The flush design sleeves over the tube ends, so the outside profile is smooth with no visible bracket or clamp. The polished finish matches polished tube and fittings. A satin version and other fixed angles are also available.

Use cases:

• Turning a Ø42.4 mm round-tube rail through a fixed 135° angle
• Chamfered, splayed, or bay corners where faces meet at 135°
• Octagonal or angled balustrade plans
• Polished-finish flush corner matching polished tube and fittings
• Clean, repeatable 135° flush joint without welding

FAQ

What tube does this elbow fit?

The Ø42.4 × 2 mm round tube — the standard railing pipe in the Strofix range.

What angle does it form?

A fixed 135° angle — an obtuse corner, as found on chamfered or splayed plans. It is not adjustable.

What does "flush" mean?

The elbow sleeves over the tube ends for a smooth, uninterrupted joint surface, with no visible bracket or clamp on the outside.

What is the elbow height?

44 mm (H = 44 mm).

What finish and grades are available?

This is the polished version. A satin version is also offered, and grade options (AISI 304 / AISI 316) are available on selected variants.

How is it fixed?

It is a flush fitting secured with adhesive — no welding is required.

About Elbows & Connectors

Elbows and connectors are stainless-steel joint fittings that link two sections of handrail or railing tube at a change of direction, creating a continuous, seamless-looking rail line around corners, up staircases and across straight joints. Flush elbows and angles slip over the tube ends and produce a smooth, weld-free joint on the visible surface; welding variants are permanently fused for a rigid connection.

Strofix supplies 15 elbow and connector products for Ø42.4 mm round pipe and 40×40 mm flat square tube, including fixed 90° flush angles, adjustable flush elbows (with one variant covering 0–70°), cross flush angles, tee ("T") connectors, tee corner connectors, inline fittings and welding flush angles — all in AISI 304 stainless steel with a satin finish, with AISI 316 and polished options on selected variants.

The correct fitting depends on tube profile, the angle of the direction change, the number of tube arms meeting at the joint and whether a screwable or welded connection is required.
