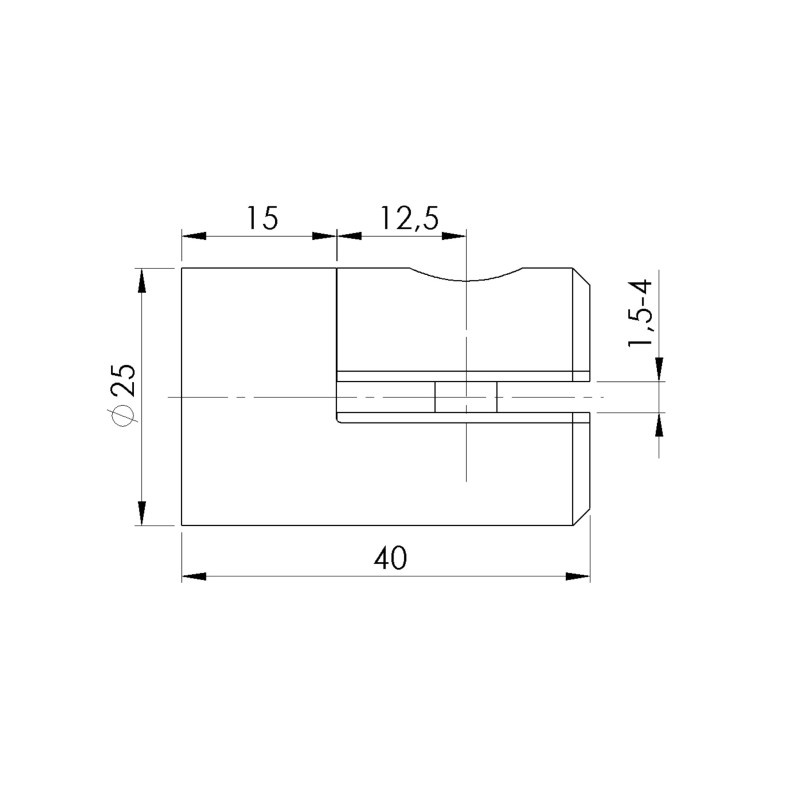

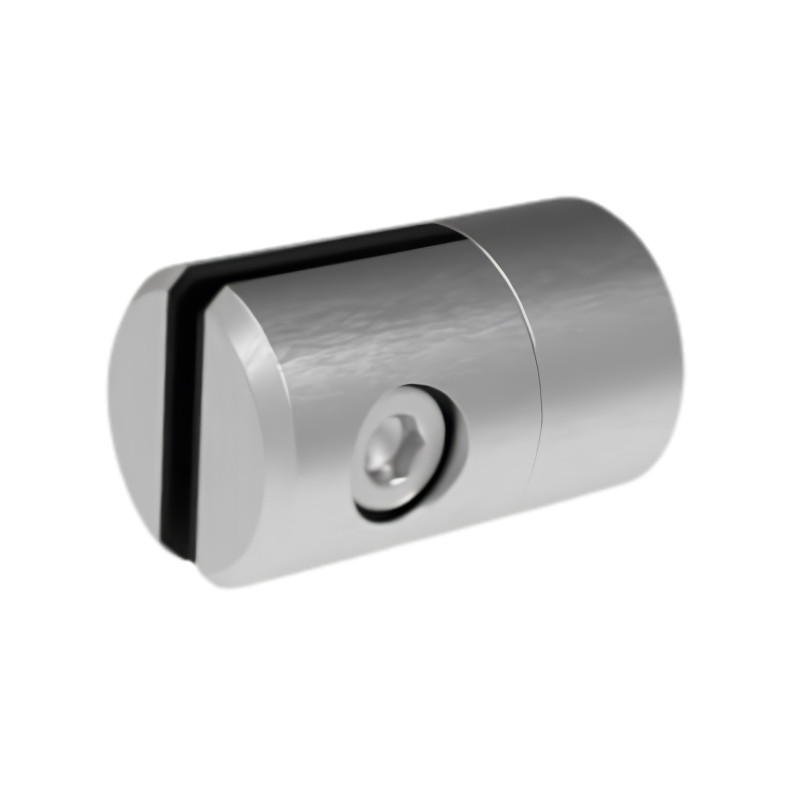

Crossbar holder for glass 4mm, Flat, Satin

The Strofix crossbar holder for glass 4mm, Flat, Satin is an AISI 304 stainless-steel fitting that secures a horizontal crossbar (infill rod) directly to a glass panel. It clamps to the panel face and holds the rod, forming the connection between the infill rod and the glass rather than a post or wall. Satin finish.

This is the glass-mount version of the crossbar holder. Where the flat and tube holders fix to a post face or round post, this holder attaches to a glass panel, letting a rod infill run across or terminate against a glass balustrade panel. It suits designs that combine a glass panel with rod infill — for example, a glass base panel with a rod handrail infill above, or a rod detail fixed to a glass surface. It clamps to the panel and holds the crossbar securely against the glass.

Use cases:

• Securing a horizontal infill rod directly to a glass panel
• Combining a glass balustrade panel with a rod infill detail
• Rod handrail or infill fixed to a glass surface
• Glass-mount rod termination or support in a mixed glass-and-rod railing
• Stainless-steel glass-mount crossbar holder for railing infill rod

FAQ

What does this holder mount to?

A glass panel — it clamps to the panel face. The other crossbar holders in the range mount to flat post faces or round Ø42.4 mm posts instead.

What does a crossbar holder do?

It secures a horizontal crossbar (infill rod) to the structure. This version connects the rod to a glass panel rather than a post.

When would I use the glass-mount version?

In designs that combine a glass panel with a rod infill — where the rod needs to be fixed to the glass surface rather than to a post or wall.

What finishes and grades are available?

Satin (this product), in AISI 304.

How is it fixed to the glass?

It clamps to the panel face, holding the crossbar against the glass.

About Crossbar Holders

A crossbar holder is a stainless-steel fitting that secures a horizontal rod or bar to a railing post, glass panel or flat surface, forming the connection between the infill rod and the structure it passes through. At intermediate posts the rod runs through the holder; at end posts it terminates in a blind hole (left or right hand); and on glass panels a dedicated glass-mount holder clamps the rod to the panel face.

Strofix supplies 12 crossbar holder products in several configurations: through-hole holders for Ø42.4 mm round pipe and flat-sided posts, left and right blind-hole bar holders for Ø42.4 mm and flat posts, connecting holders for intermediate positions, a vertical holder, and a glass-mount holder — in AISI 304 or AISI 316 stainless steel with satin or polished finishes, with holder heights of 20, 22 and 23 mm for Ø10 and Ø12 mm rod diameters.

The correct holder depends on post profile, rod diameter, position in the railing run and whether the rod terminates or passes through.
