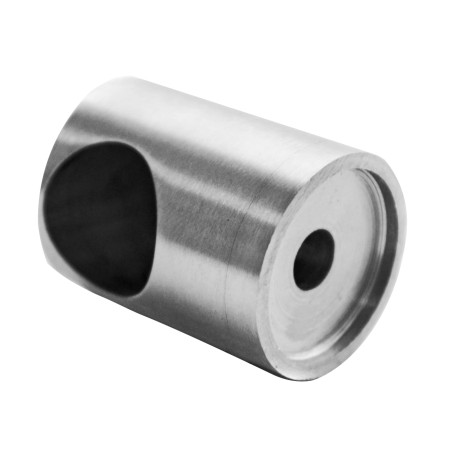

Bar holder for 12mm, Right, Flat, Satin

The Strofix bar holder for 12mm, Right, Flat, Satin is an AISI 304 stainless-steel fitting that terminates a horizontal Ø12 mm crossbar (infill rod) against a flat mounting surface. It mounts on a flat surface and holds the end of the rod in a blind hole — a bore that receives the rod but does not pass through — for the right-hand end of a railing run. Satin finish, with fixing screws included.

A bar holder closes off the end of a rod infill where the run meets an end post or wall. Unlike the through-hole crossbar holder, which lets the rod pass straight through at intermediate positions, this blind-hole holder caps the rod end cleanly, concealing the cut end inside the fitting. The "right" designation identifies the hand of the holder for the right end of a run; a matching left-hand version completes the pair. It fixes to any flat surface — a post face, stringer, or wall — with the included screws.

Use cases:

• Terminating a Ø12 mm infill rod at the right-hand end of a railing run
• Blind-hole rod end at an end post or wall
• Concealing the cut end of an infill rod inside the fitting
• Flat-mount rod termination on a post face, stringer, or wall
• Stainless-steel end bar holder for railing infill rod

FAQ

How does a bar holder differ from a crossbar holder?

A through-hole crossbar holder lets the rod pass straight through at intermediate positions. This bar holder has a blind hole that receives and caps the rod end, used where the run terminates.

What does "right" mean?

It identifies the hand of the holder — this is for the right-hand end of a railing run. A matching left-hand version is available for the other end.

What crossbar diameter does it fit?

Ø12 mm rod.

What surface does it mount to?

A flat surface — a post face, stringer, or wall. Fixing screws are included.

What finishes and grades are available?

Satin (this product), in AISI 304.

About Crossbar Holders

A crossbar holder is a stainless-steel fitting that secures a horizontal rod or bar to a railing post, glass panel or flat surface, forming the connection between the infill rod and the structure it passes through. At intermediate posts the rod runs through the holder; at end posts it terminates in a blind hole (left or right hand); and on glass panels a dedicated glass-mount holder clamps the rod to the panel face.

Strofix supplies 12 crossbar holder products in several configurations: through-hole holders for Ø42.4 mm round pipe and flat-sided posts, left and right blind-hole bar holders for Ø42.4 mm and flat posts, connecting holders for intermediate positions, a vertical holder, and a glass-mount holder — in AISI 304 or AISI 316 stainless steel with satin or polished finishes, with holder heights of 20, 22 and 23 mm for Ø10 and Ø12 mm rod diameters.

The correct holder depends on post profile, rod diameter, position in the railing run and whether the rod terminates or passes through.
