Crossbar holder for 12mm, Flat, Satin

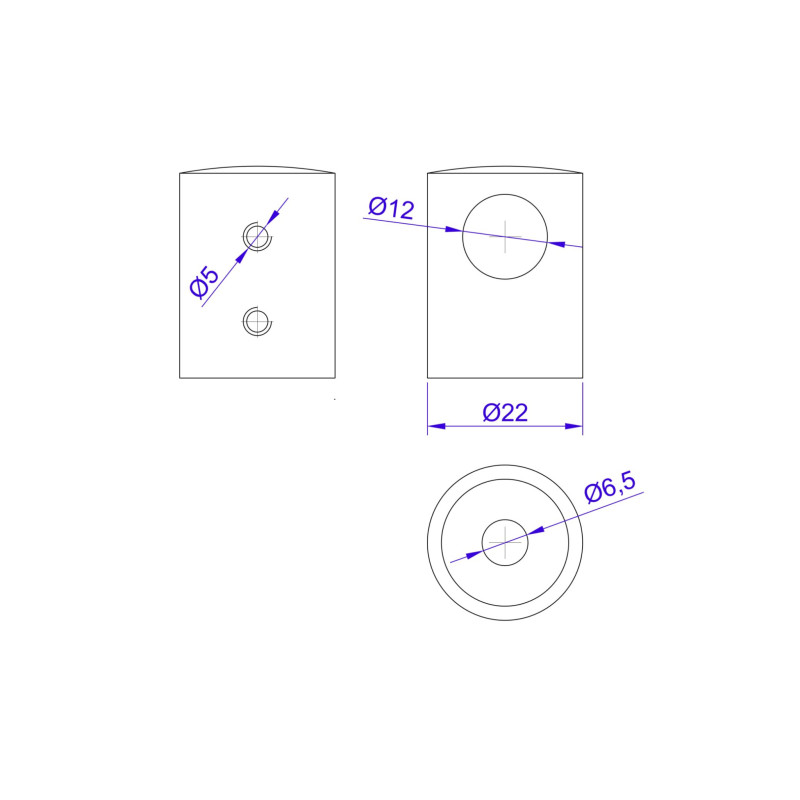

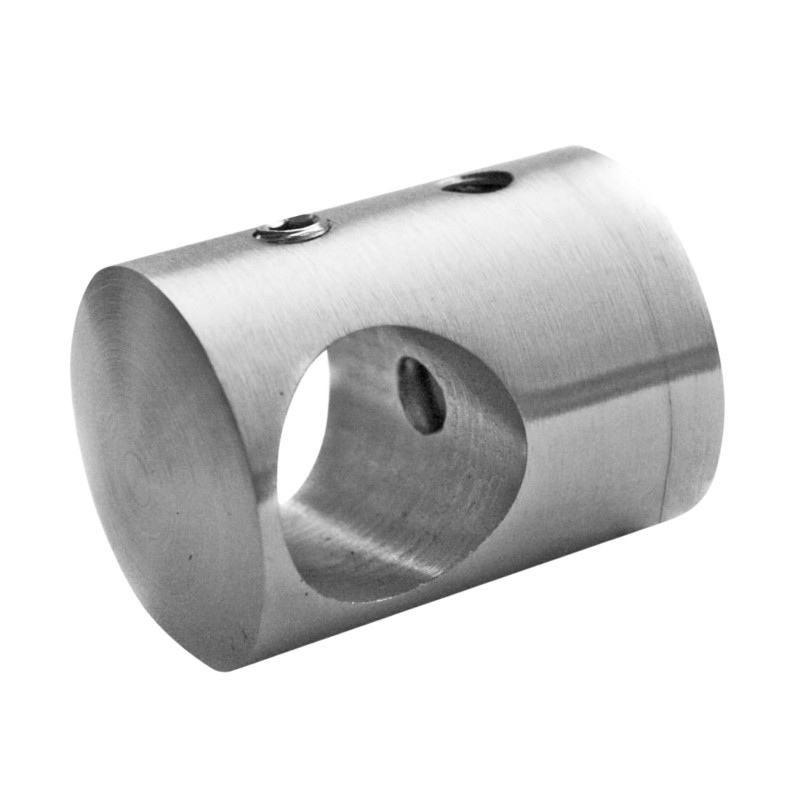

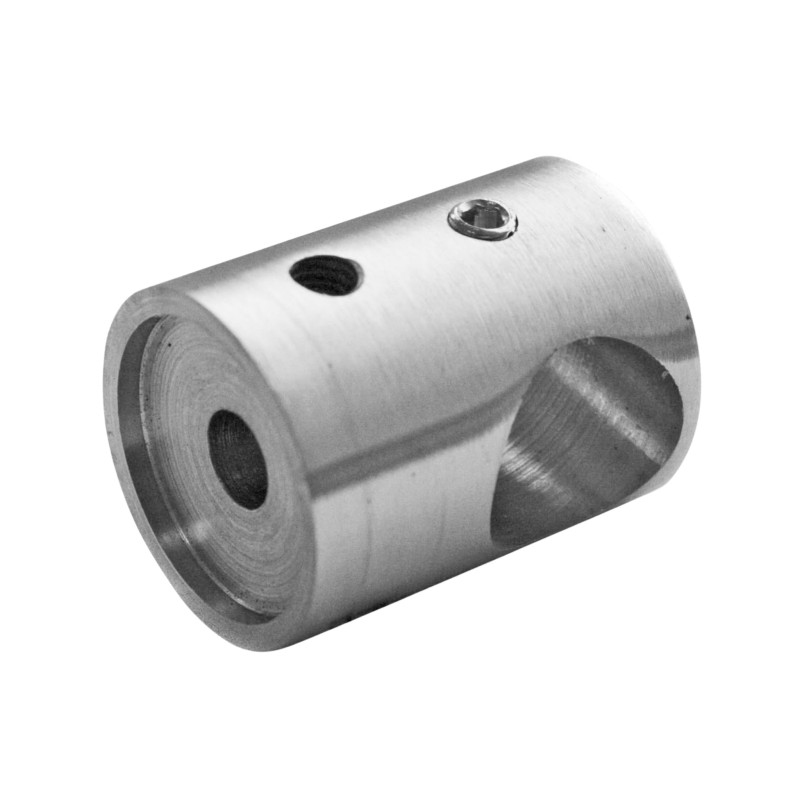

The Strofix crossbar holder for 12mm, Flat, Satin is an AISI 304 stainless-steel fitting that secures a horizontal Ø12 mm crossbar (infill rod) to a flat mounting surface. It mounts on a flat surface and holds the rod through a bore sized for Ø12 mm rod. Finished in satin, 20–22 mm high, with fixing screws included.

A crossbar holder forms the connection between a horizontal infill rod and the structure it passes through. This flat-mount, through-hole version is used at intermediate positions in a railing run, where the Ø12 mm rod passes straight through the holder and continues to the next support. It fixes to any flat surface — a post face, stringer, or wall — with the included screws. Related holders in the range cover round Ø42.4 mm posts, blind-hole (left/right) end terminations, connecting positions, vertical mounting, and glass-panel mounting, in satin or polished finishes.

Use cases:

• Securing a horizontal Ø12 mm infill rod to a flat surface at an intermediate position
• Through-hole crossbar support in a rod-infill balustrade
• Flat-mount rod holder on a post face, stringer, or wall
• Ø12 mm crossbar runs in stainless-steel railings
• Stainless-steel crossbar holder for railing infill rod

FAQ

What does a crossbar holder do?

It secures a horizontal crossbar (infill rod) to the structure. This through-hole version lets the Ø12 mm rod pass straight through at intermediate positions in the run.

What crossbar diameter does it fit?

Ø12 mm rod.

What surface does it mount to?

A flat surface — a post face, stringer, or wall. Fixing screws are included. A version for round Ø42.4 mm posts is also available.

What finishes are available?

Satin (this product) or polished, in AISI 304 or AISI 316.

What is the holder height?

20–22 mm, depending on the configuration.

Which holder do I need for the end of a run?

At an end post the rod terminates in a blind-hole bar holder (left- or right-hand); at intermediate posts it passes through this through-hole holder.

About Crossbar Holders

A crossbar holder is a stainless-steel fitting that secures a horizontal rod or bar to a railing post, glass panel or flat surface, forming the connection between the infill rod and the structure it passes through. At intermediate posts the rod runs through the holder; at end posts it terminates in a blind hole (left or right hand); and on glass panels a dedicated glass-mount holder clamps the rod to the panel face.

Strofix supplies 12 crossbar holder products in several configurations: through-hole holders for Ø42.4 mm round pipe and flat-sided posts, left and right blind-hole bar holders for Ø42.4 mm and flat posts, connecting holders for intermediate positions, a vertical holder, and a glass-mount holder — in AISI 304 or AISI 316 stainless steel with satin or polished finishes, with holder heights of 20, 22 and 23 mm for Ø10 and Ø12 mm rod diameters.

The correct holder depends on post profile, rod diameter, position in the railing run and whether the rod terminates or passes through.
