Crossbar holder for 12mm, 42.4, Polished

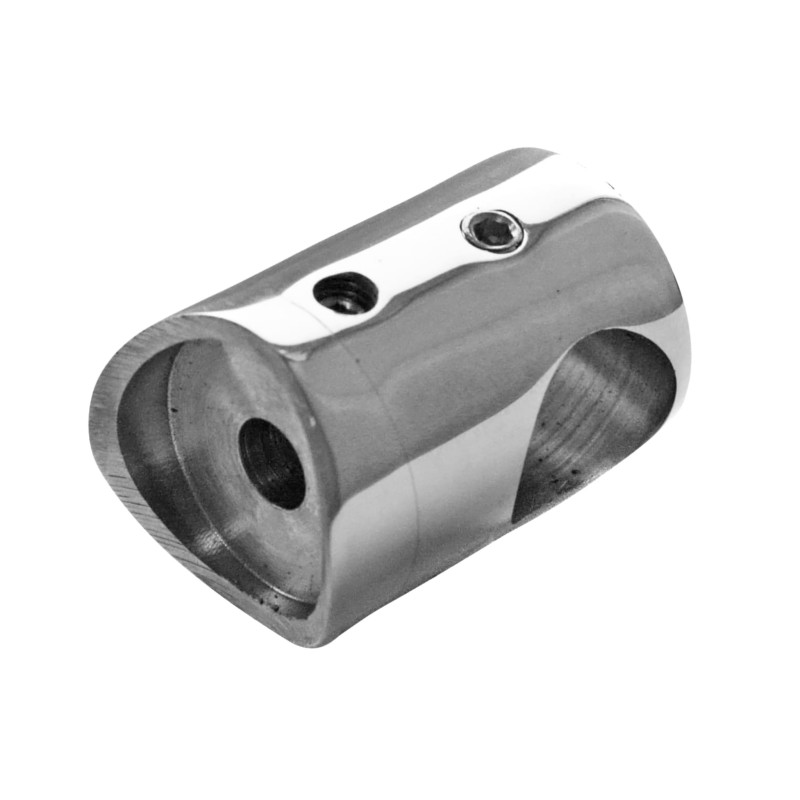

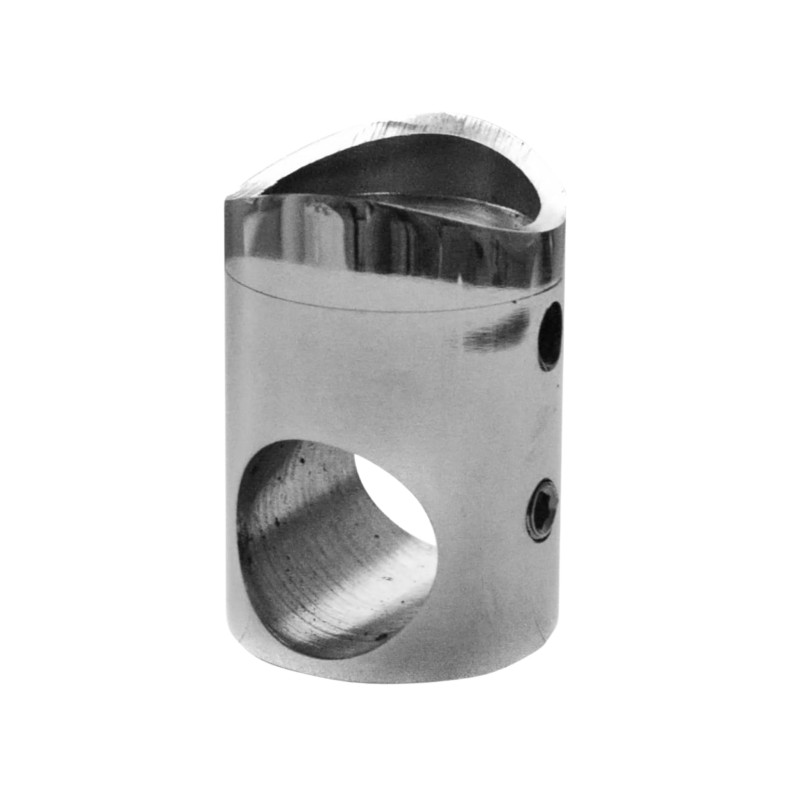

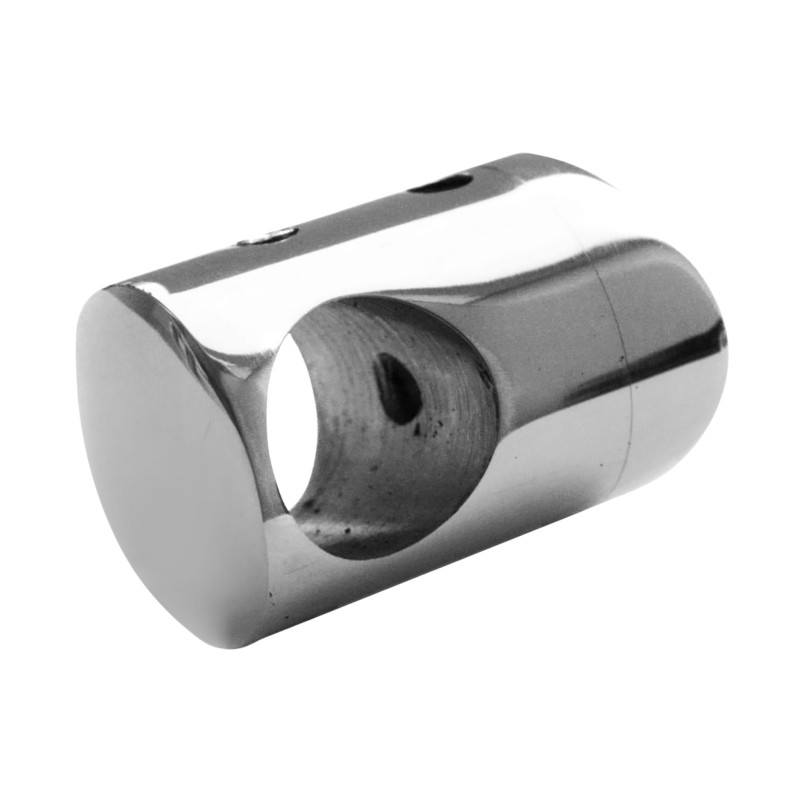

The Strofix crossbar holder for 12mm, 42.4, Polished is an AISI 304 stainless-steel fitting that secures a horizontal Ø12 mm crossbar (infill rod) to a round Ø42.4 mm post tube. Its base is curved to seat against the round post, and it holds the rod through a bore, at intermediate positions where the rod passes straight through. Polished (mirror) finish.

This is the polished-finish, tube-mount version of the crossbar holder, shaped to fit the Ø42.4 mm round railing post. It is identical in form to the satin tube version but has a mirror-polished surface, suited to installations matching polished posts and fittings. Its saddle base matches the curve of the round tube, and it forms the connection between a horizontal infill rod and the round post at intermediate positions in a railing run, with the rod passing straight through the holder to the next support.

Use cases:

• Securing a horizontal Ø12 mm infill rod to a round Ø42.4 mm post
• Polished-finish crossbar support matching polished round posts and fittings
• Through-hole crossbar support on round-tube posts at intermediate positions
• Rod-infill balustrades built on Ø42.4 mm round posts
• Stainless-steel polished tube-mount crossbar holder for railing infill rod

FAQ

How does this differ from the satin tube version?

Both are AISI 304 tube-mount crossbar holders for Ø12 mm rod on a Ø42.4 mm post. This version has a polished (mirror) finish; the satin version has a brushed matte finish.

What post does this holder mount to?

A round Ø42.4 mm post tube – its base is curved to seat against the round post. A flat-mount version is available for flat post faces.

What does a crossbar holder do?

It secures a horizontal crossbar (infill rod) to the structure. This through-hole version lets the Ø12 mm rod pass straight through at intermediate positions.

What crossbar diameter does it fit?

Ø12 mm rod.

Which holder do I need for the end of a run?

At an end post the rod terminates in a blind-hole bar holder; at intermediate posts it passes through this through-hole holder.

About Crossbar Holders

A crossbar holder is a stainless-steel fitting that secures a horizontal rod or bar to a railing post, glass panel or flat surface, forming the connection between the infill rod and the structure it passes through. At intermediate posts the rod runs through the holder; at end posts it terminates in a blind hole (left or right hand); and on glass panels a dedicated glass-mount holder clamps the rod to the panel face.

Strofix supplies 12 crossbar holder products in several configurations: through-hole holders for Ø42.4 mm round pipe and flat-sided posts, left and right blind-hole bar holders for Ø42.4 mm and flat posts, connecting holders for intermediate positions, a vertical holder, and a glass-mount holder – in AISI 304 or AISI 316 stainless steel with satin or polished finishes, with holder heights of 20, 22 and 23 mm for Ø10 and Ø12 mm rod diameters.

The correct holder depends on post profile, rod diameter, position in the railing run and whether the rod terminates or passes through.
