Glass clamp 52x52mm, Flat, Satin, With support

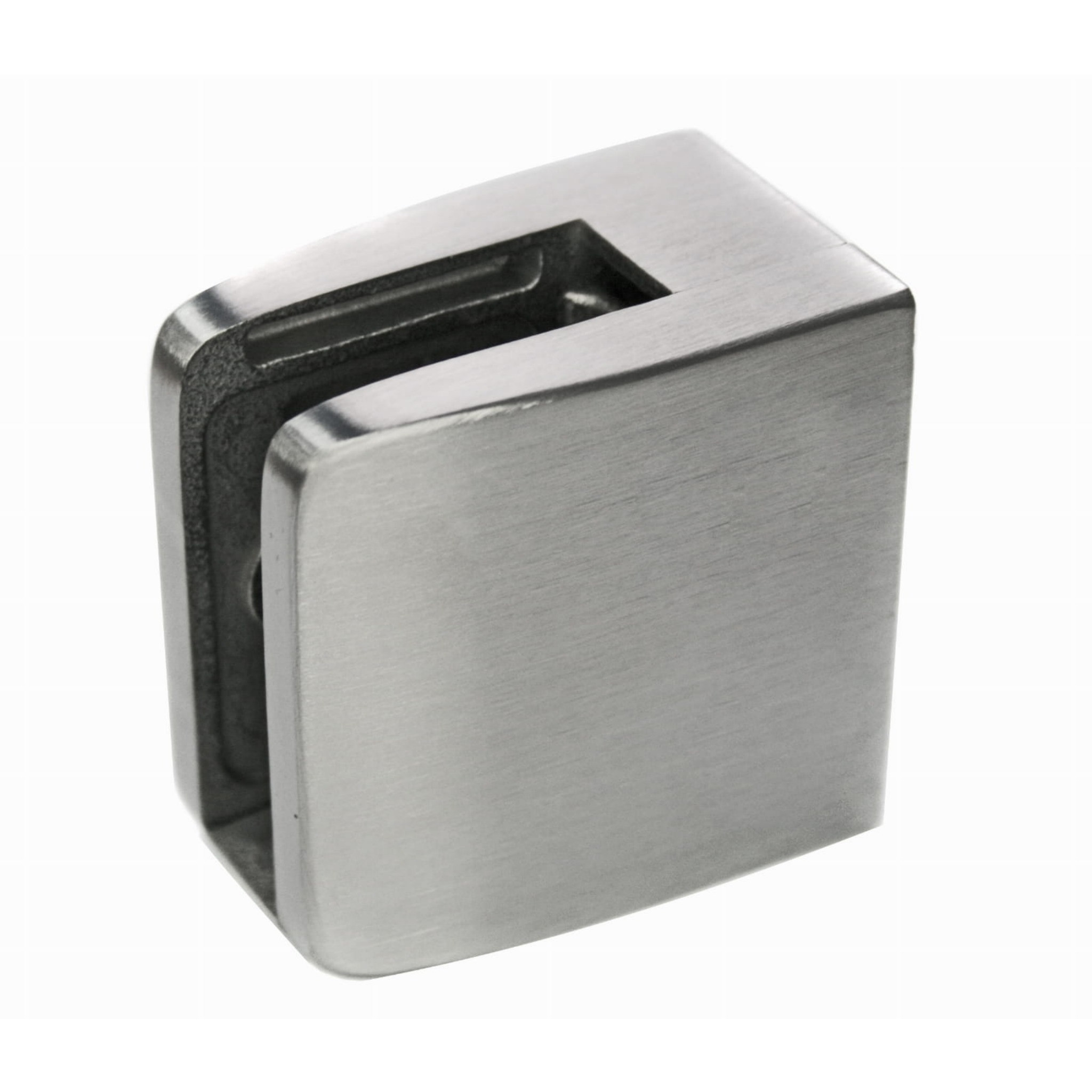

The Strofix glass clamp 52×52 mm flat with support is a stainless-steel glass panel holder designed for mounting on flat surfaces such as walls, square posts, and flat-sided structural members. The clamp measures 52 × 52 × 32 mm (L × H × depth) and holds glass panels from 8 to 12.76 mm thick. The distance between the mounting surface and the glass panel is 20 mm. Available in AISI 304 or AISI 316 with a satin finish. Includes support. Attached by screwing (elements for screwing included).

The 52 × 52 mm is the largest square flat-mount glass clamp in the Strofix range. The deeper 32 mm body and the 8–12.76 mm glass range make this a heavy-duty clamp designed specifically for thicker glass panels — it does not accommodate glass below 8 mm. The glass thickness options include 8, 10, and 12 mm single tempered glass and 8.76, 10.76, and 12.76 mm laminated safety glass (12.76 mm = 66.2 designation). The included support provides a security plate underneath the glass for secondary retention. AISI 304 is suitable for standard installations; AISI 316 provides higher chloride resistance for coastal or exposed environments.

Select the glass thickness and steel grade in the dropdowns at order time.

Use cases:

• Heavy-duty flat-mount glass clamping for panels 8 mm and thicker
• Glass balustrade installations with 10–12 mm tempered or 10.76–12.76 mm laminated glass
• Large glass panel installations where a bigger clamp body is proportionally appropriate
• Commercial and public-access railings requiring robust clamp dimensions for thick glass
• Coastal installations requiring AISI 316 with heavy-duty glass clamping capacity

FAQ

What glass thicknesses are supported?

The clamp accepts glass from 8 to 12.76 mm: single tempered glass (8, 10, 12 mm) and laminated safety glass (8.76, 10.76, 12.76 mm). Note that 6 mm glass is not supported — for 6 mm glass, use the 45 × 45 or 45 × 63 mm clamps. A "without rubbers" option is available for ordering the clamp body only.

How does this compare to the 45×45 and 45×63 flat clamps?

The 45 × 45 handles 6–10.76 mm glass in a compact body (26–27 mm depth). The 45 × 63 extends to 12.76 mm in a wider rectangular body (28–30 mm depth). This 52 × 52 also handles 8–12.76 mm but in a larger square body (32 mm depth) and excludes 6 mm glass. Choose the 52 × 52 when the larger square clamp body is preferred aesthetically or when the deeper 32 mm body is needed for the installation configuration.

What are the clamp dimensions?

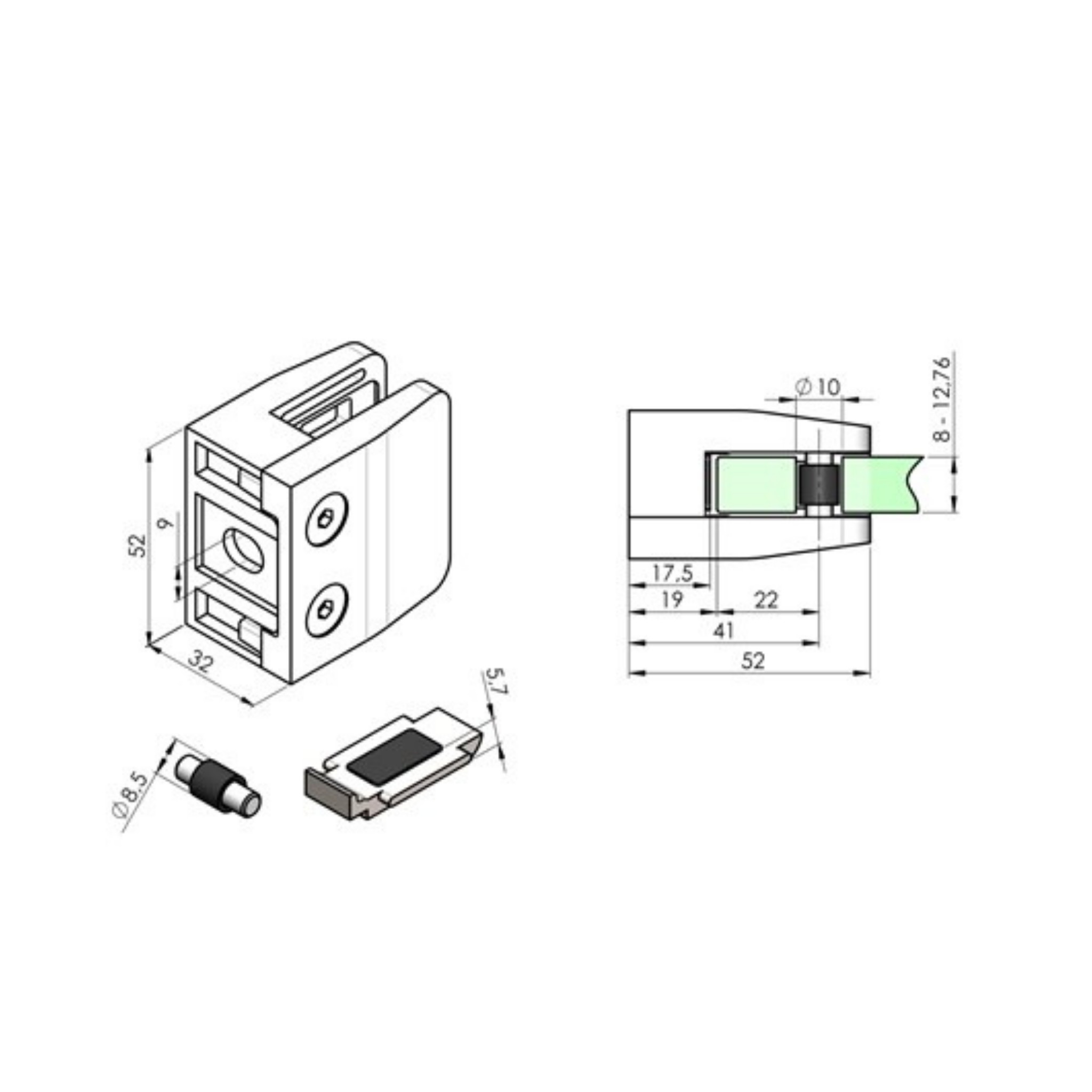

The clamp is 52 × 52 × 32 mm (L × H × depth). This is the deepest body among the flat-mount clamps. The standoff distance from mounting surface to glass is 20 mm.

Does this include support?

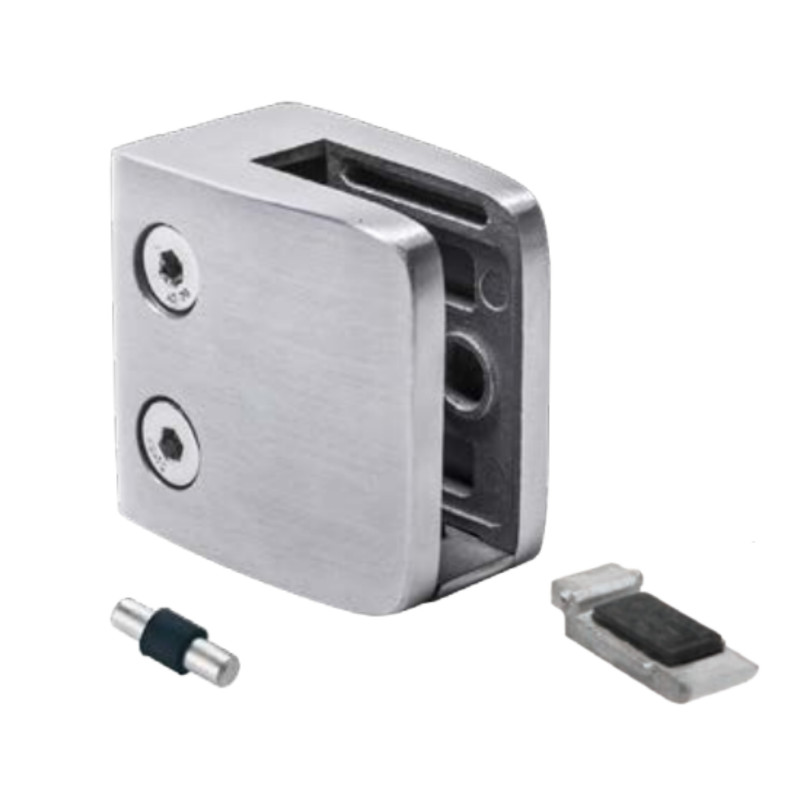

Yes. The clamp includes a security plate for secondary glass retention.

Which steel grades are available?

AISI 304 and AISI 316. Choose AISI 316 for coastal, pool, or high-humidity installations.

How is the clamp attached?

The clamp is attached to the mounting surface by screwing. Fastening hardware is included.

About Glass Clamps for Flat Surfaces

A glass clamp for a flat surface is a stainless-steel bracket that grips a glass panel along its edge without requiring a drilled hole, fixing the panel to a wall, post or flat-sided structure by clamping pressure alone. Two halves tighten around the glass with rubber inserts that cushion the contact and accommodate different panel thicknesses.

Strofix supplies flat-mount glass clamps in ten body variants — from a compact 30×30 mm mini clamp to larger bodies with lengths up to 67 mm, heights up to 45 mm and glass-edge overhangs up to 18 mm — in AISI 304 or AISI 316 stainless steel with satin or polished finishes. Rubber inserts are available for 4, 6 and 8 mm glass, or the clamps can be ordered without rubbers for custom applications.

The correct clamp depends on body size, glass thickness, steel grade and the required finish.
