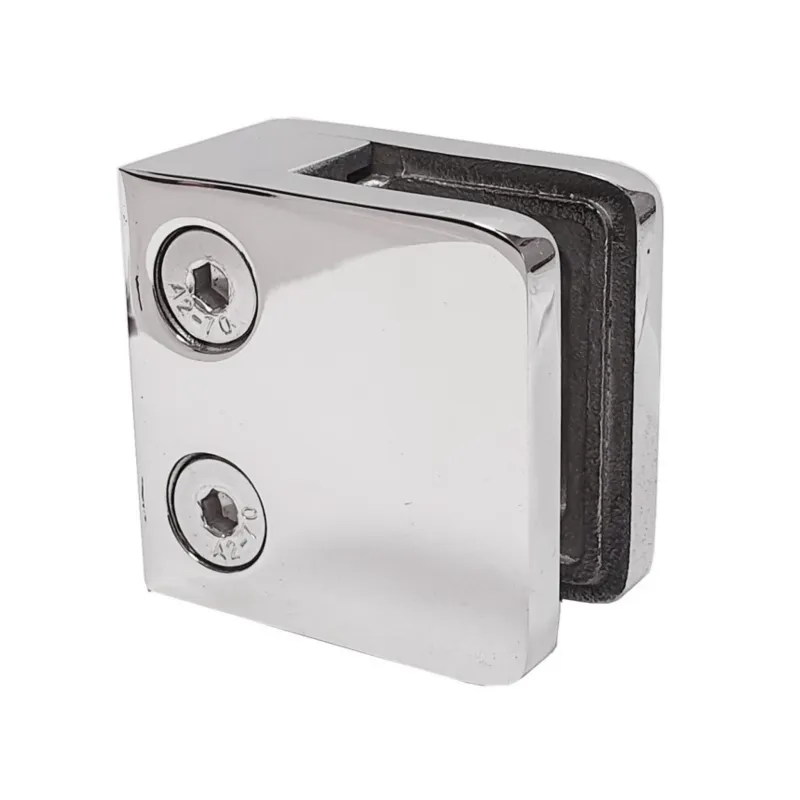

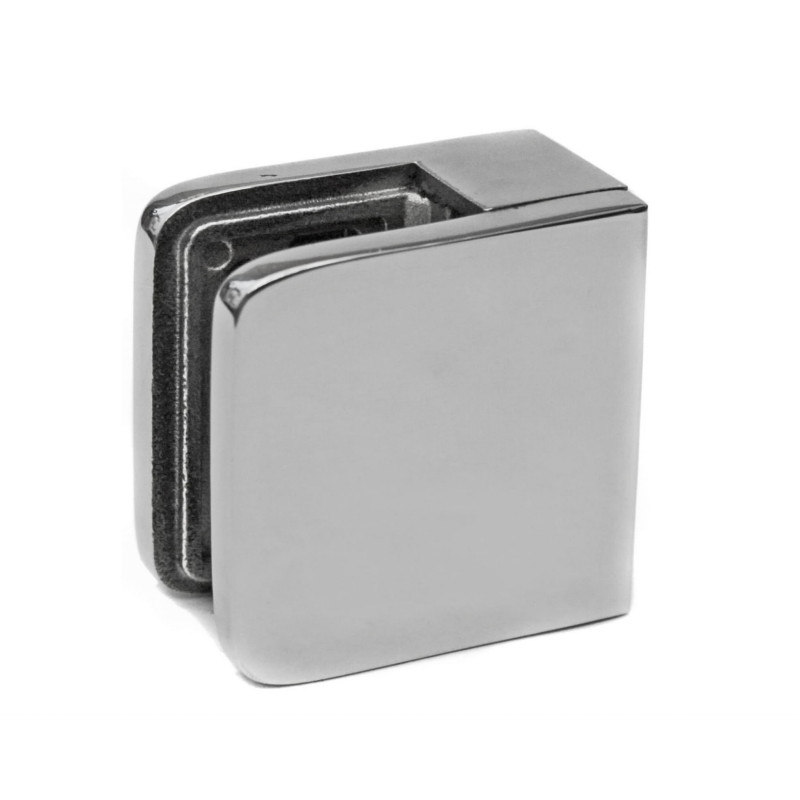

Glass clamp 45x45mm, Flat, Polished

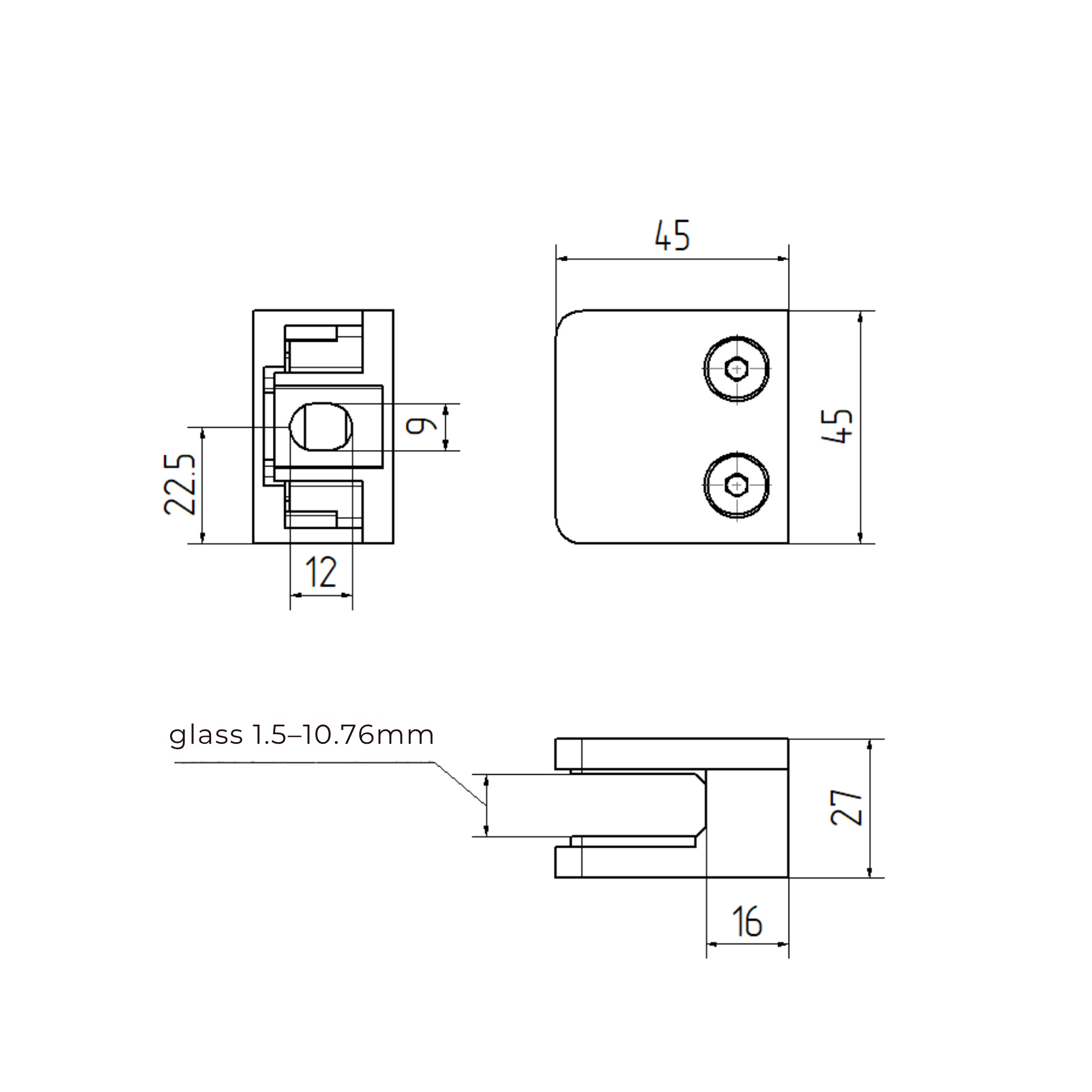

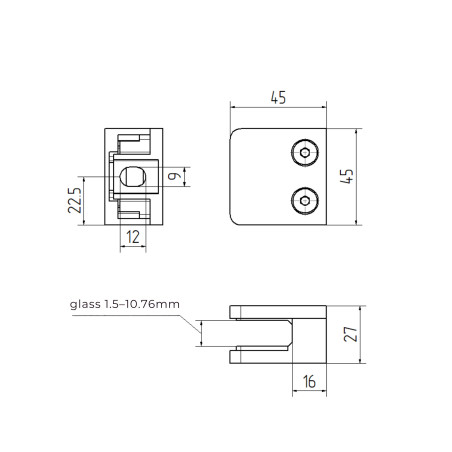

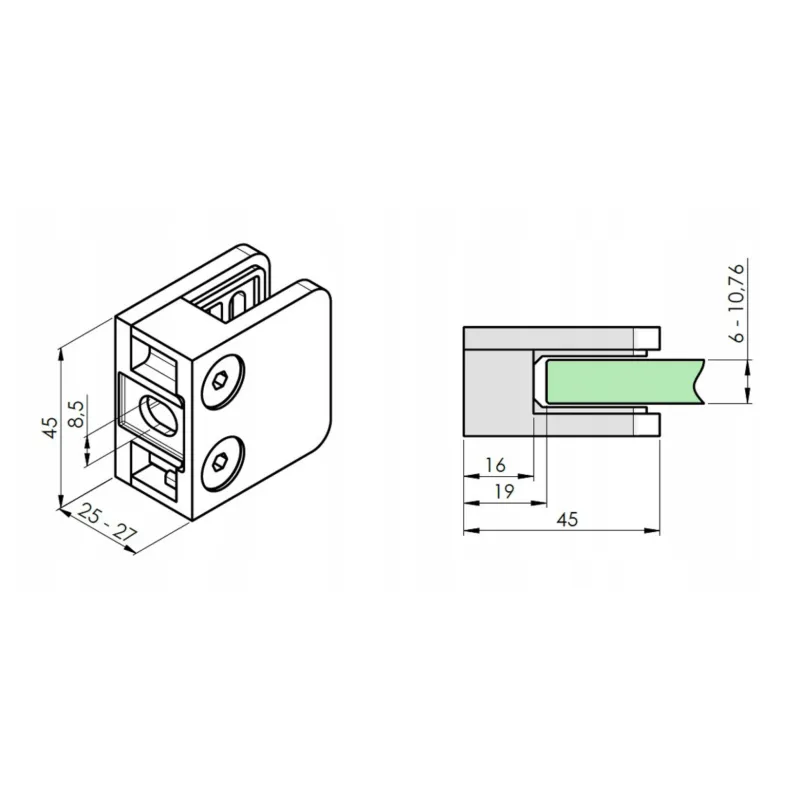

The Strofix glass clamp 45×45 mm flat polished (without supporter) is a stainless-steel glass panel holder designed for mounting on flat surfaces such as walls, square posts, and flat-sided structural members. The clamp measures 45 × 45 × 26 mm (L × H × depth) and holds glass panels from 6 to 10.76 mm thick. The distance between the mounting surface and the glass panel is 20 mm. Available in AISI 304 or AISI 316 with a mirror-polished finish. Attached by screwing (elements for screwing included).

The polished finish provides a high-gloss, mirror-like appearance that suits premium and contemporary interior and exterior glass railing installations. This is the aesthetic upgrade from the satin-finished version of the same clamp — the dimensions, glass range, mounting type, and structural performance are identical. The "without supporter" designation means this clamp does not include a safety support bracket underneath the glass panel. Glass thickness options cover single tempered glass (6, 8, 10 mm) and laminated safety glass (8.76, 10.76 mm). AISI 304 is suitable for standard installations; AISI 316 provides higher chloride resistance for coastal or exposed environments.

Select the glass thickness and steel grade in the dropdowns at order time.

Use cases:

• Premium glass balustrade installations requiring a mirror-polished clamp finish
• High-gloss contemporary railing designs on flat-sided posts and walls
• Interior glass partitions and balustrades where polished hardware is specified
• Design-led projects where the clamp finish must match other polished railing components
• Coastal installations requiring AISI 316 in polished finish

FAQ

How does this differ from the satin version?

The only difference is the surface finish — polished (mirror-like) versus satin (brushed). The dimensions (45 × 45 × 26 mm), glass range (6–10.76 mm), grades (AISI 304/316), mounting type (flat), standoff (20 mm), and structural performance are identical. The polished version is priced higher than the satin version.

What does "without supporter" mean?

This clamp holds the glass by clamping pressure between rubber gaskets only — it does not include a safety support bracket underneath the glass. The "with support" version (SKU ST-045450B, satin only) adds a security plate and safety pin. Check availability of a polished "with support" version in the Strofix range.

What glass thicknesses are supported?

The clamp accepts glass from 6 to 10.76 mm: single tempered glass (6, 8, 10 mm) and laminated safety glass (8.76, 10.76 mm). Select the matching rubber gasket in the dropdown.

Which steel grades are available?

AISI 304 and AISI 316. Choose AISI 316 for coastal, pool, or high-humidity installations.

Does the polished finish require special maintenance?

Polished stainless steel shows fingerprints and surface marks more readily than satin. Regular cleaning with a stainless-steel cleaner maintains the mirror appearance. The polished finish is more visually demanding in high-traffic areas.

How is the clamp attached?

The clamp is attached to the mounting surface by screwing. Fastening hardware is included.

About Glass Clamps for Flat Surfaces

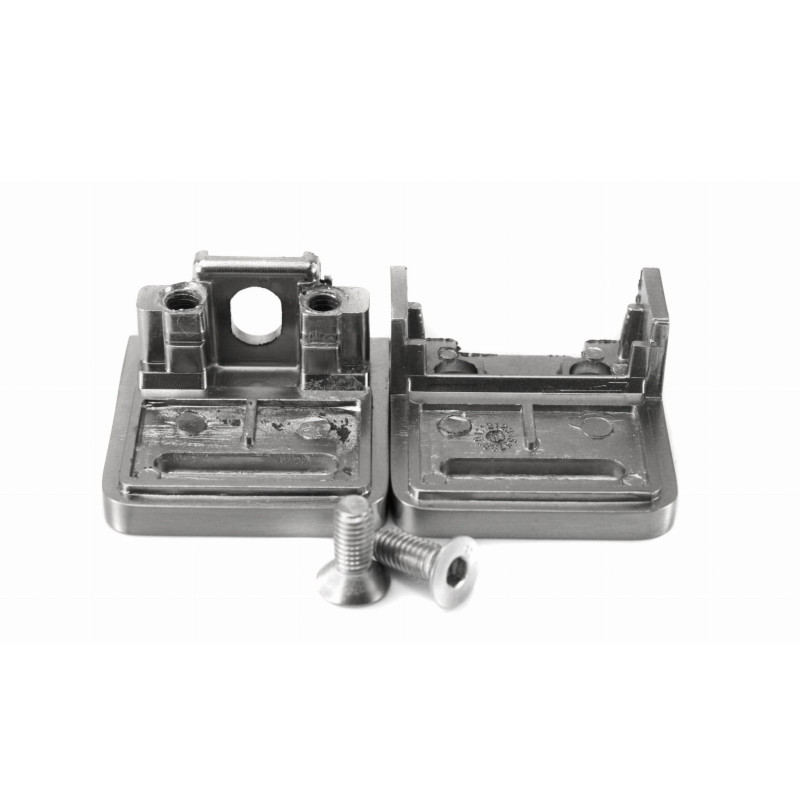

A glass clamp for a flat surface is a stainless-steel bracket that grips a glass panel along its edge without requiring a drilled hole, fixing the panel to a wall, post or flat-sided structure by clamping pressure alone. Two halves tighten around the glass with rubber inserts that cushion the contact and accommodate different panel thicknesses.

Strofix supplies flat-mount glass clamps in ten body variants — from a compact 30×30 mm mini clamp to larger bodies with lengths up to 67 mm, heights up to 45 mm and glass-edge overhangs up to 18 mm — in AISI 304 or AISI 316 stainless steel with satin or polished finishes. Rubber inserts are available for 4, 6 and 8 mm glass, or the clamps can be ordered without rubbers for custom applications.

The correct clamp depends on body size, glass thickness, steel grade and the required finish.
