Glass adaptor - double, D50, SS, satin
€48.84 Tax excluded
€59.10 Tax included
€59.10 Tax included
Tax included
Quantity

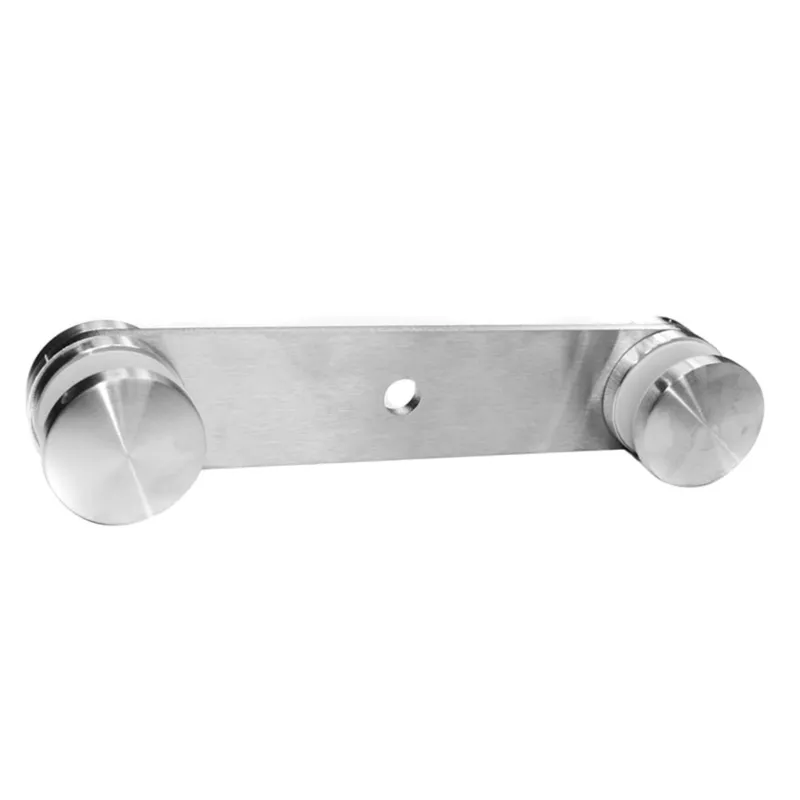

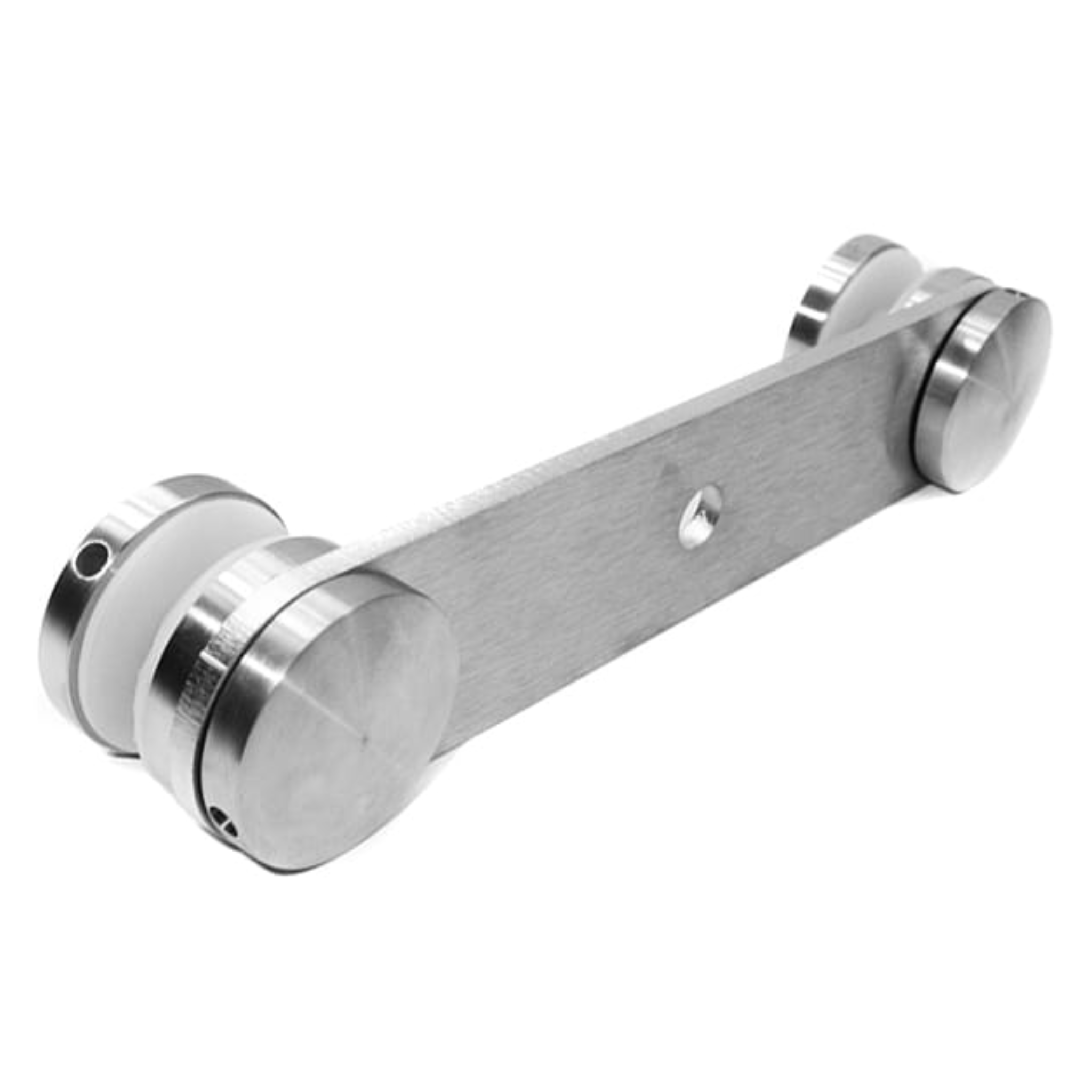

The Strofix double glass adaptor set D50 is a complete AISI 304 stainless-steel point-fixing assembly for holding two glass panels from a single mounting point. Satin finish.

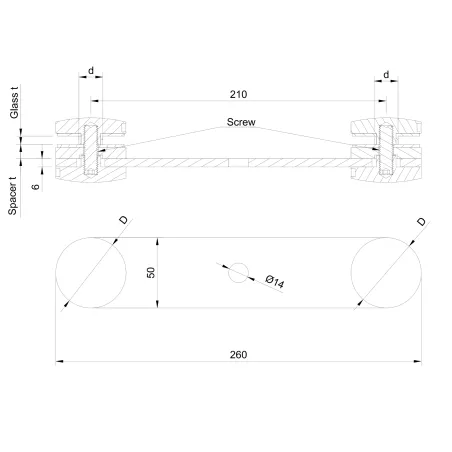

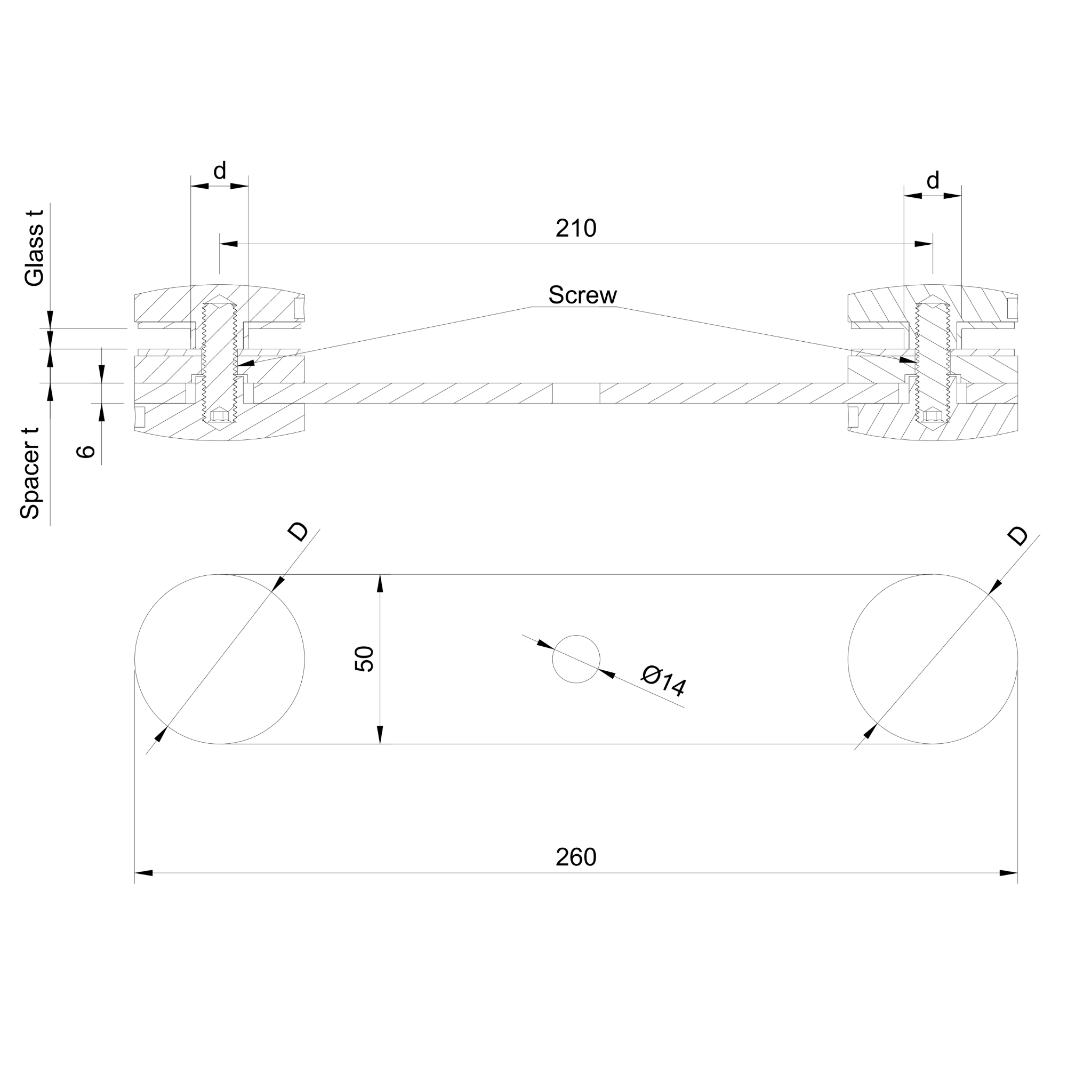

The set contains one 260x50 mm stainless-steel plate, 6 mm thick with a central hole; 4 D50 mm point fixings with rubber gaskets; and 2 M10 threaded rods. Everything needed for the connection is included – no separate hardware has to be ordered.
The plate spans between two drilled holes in the glass, so a single wall or structure fixing carries both panels. This reduces the number of penetrations into the substrate compared with fixing each panel separately.
Use cases:
- Holding two glass panels from one fixing point in a balustrade run
- Frameless glass partitions where penetrations into the substrate must be minimised
- Glass-to-glass joints in shower enclosures and interior screens
- Balcony and terrace balustrades with continuous glass runs
- Retrofit installations where existing fixing points must be reused
FAQ:
What is included in the set?
One 260x50 mm plate (6 mm thick with a central hole), 4 D50 mm point fixings with rubber gaskets, and 2 M10 threaded rods.
How many glass panels does it hold?
Two. The plate bridges between a drilled hole in each panel.
What thread size is used?
M10. The threaded rods connect the point fixings to the plate.
Does the glass need to be pre-drilled?
Yes. The holes must be drilled by the glass supplier before tempering – toughened glass cannot be drilled after heat treatment.
What steel grade is used?
AISI 304 stainless steel with a satin finish.
