Glass adaptor - double, D50, SS, satin
€22.18 Tax excluded
€26.84 Tax included
€26.84 Tax included
Tax included
Quantity

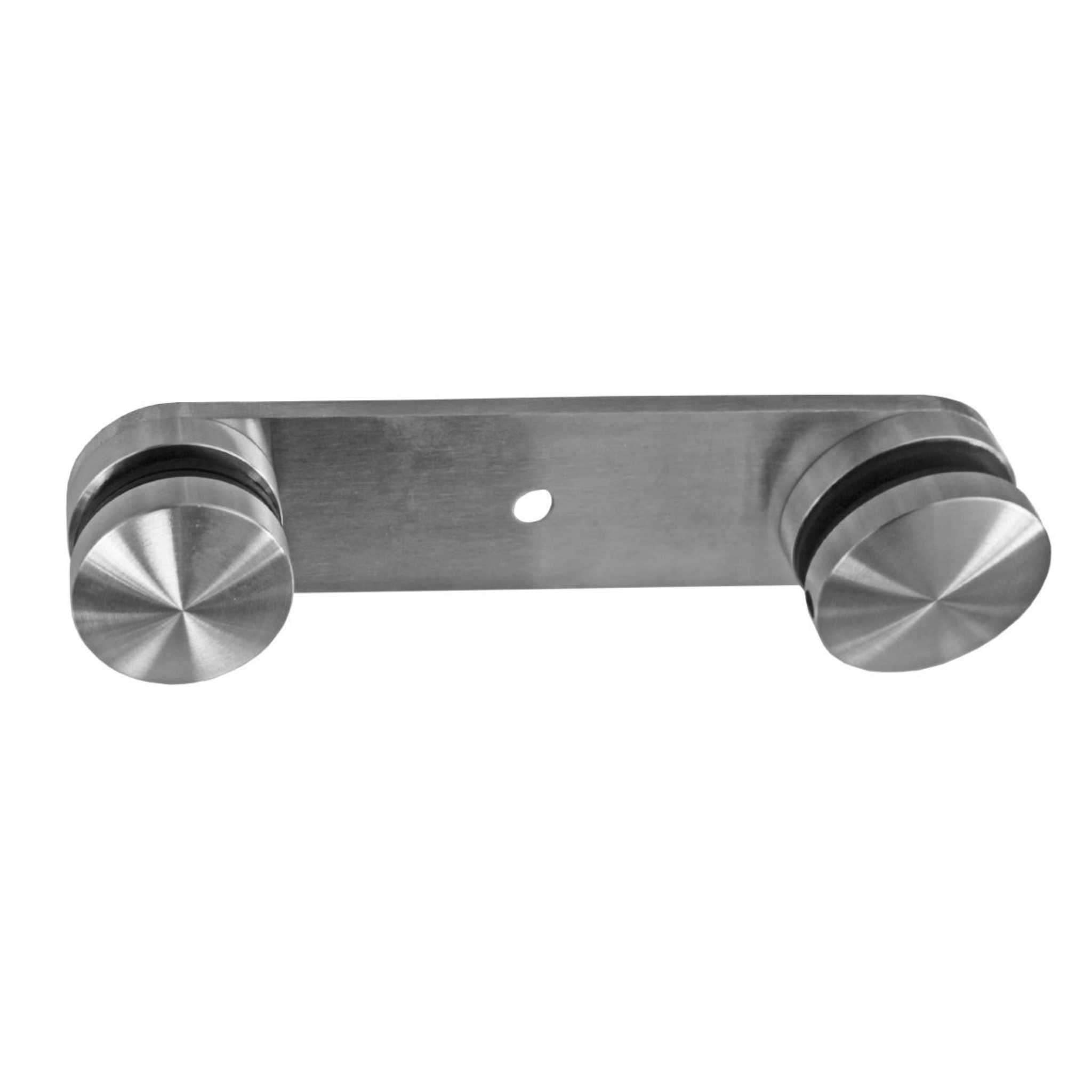

The Strofix double glass adaptor set D50 is a complete AISI 304 stainless-steel point-fixing assembly for holding two glass panels from a single mounting point. Satin finish.

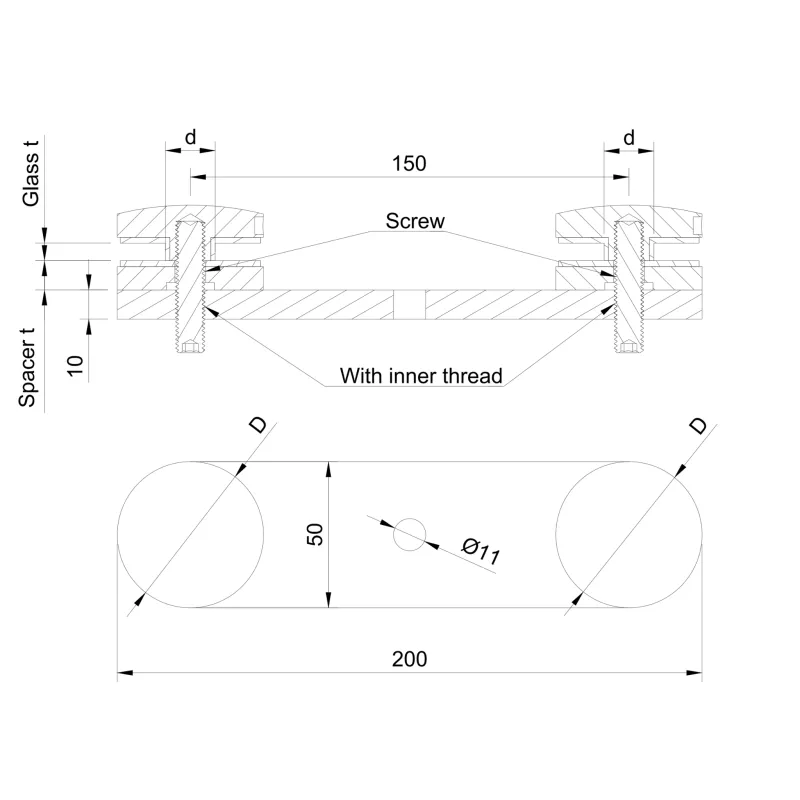

The set contains one 200x50 mm stainless-steel plate, 10 mm thick with a central hole and two M10 threaded holes; 4 D50 mm point fixings with rubber gaskets; and 2 M10 threaded rods. Everything needed for the connection is included – no separate hardware has to be ordered.
The plate spans between two drilled holes in the glass, so a single wall or structure fixing carries both panels. This reduces the number of penetrations into the substrate compared with fixing each panel separately.
Use cases:

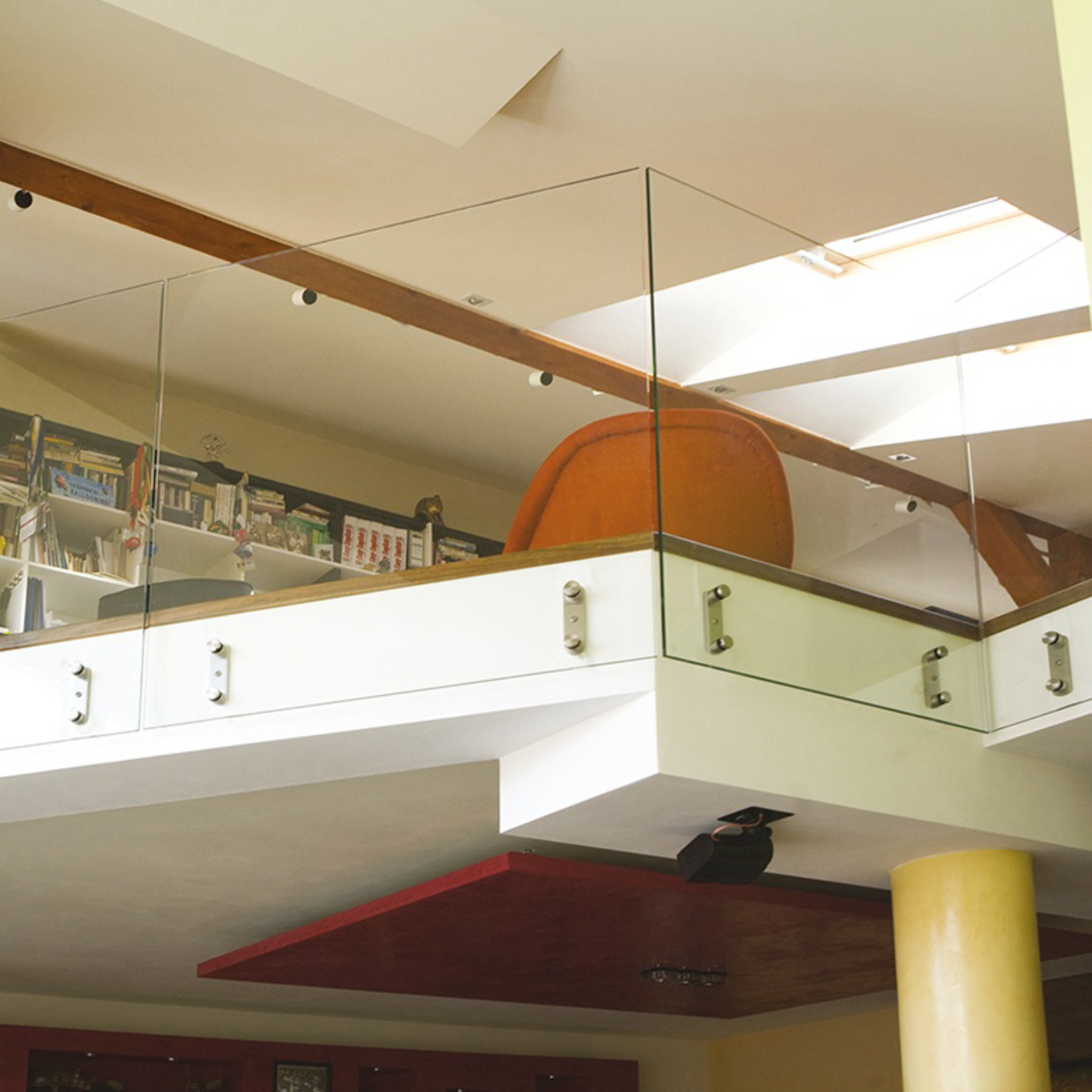

- Holding two glass panels from one fixing point in a balustrade run
- Frameless glass partitions where penetrations into the substrate must be minimised
- Glass-to-glass joints in shower enclosures and interior screens
- Balcony and terrace balustrades with continuous glass runs
- Retrofit installations where existing fixing points must be reused
FAQ:
What is included in the set?
One 200x50 mm plate (10 mm thick with a central hole and two M10 threaded holes), 4 D50 mm point fixings with rubber gaskets, and 2 M10 threaded rods.
How many glass panels does it hold?
Two. The plate bridges between a drilled hole in each panel.
What thread size is used?
M10. The threaded rods connect the point fixings to the plate.
Does the glass need to be pre-drilled?
Yes. The holes must be drilled by the glass supplier before tempering – toughened glass cannot be drilled after heat treatment.
What steel grade is used?
AISI 304 stainless steel with a satin finish.
Strofix quality
Strofix designs and supplies stainless-steel fastening systems for architectural glass, including glass adaptors, railing components, handrails, and structural fixings. We also serve architects, installers, and building contractors on residential and commercial projects.
The products we sell are designed by us, and manufactured under strict quality guidelines so that we can be sure our customers are getting exactly what they ordered.
All of our products meet EU quality standards. Our shipping partners provide convenient delivery times. For more on our return & warranty policy read here. Secure payments are provided by MakeCommerce.
