SKU SI-SM2-10x50-304

Set screw M10x50, AISI304

Brand Strofix
€0.50 Tax excluded
€0.61 Tax included
Tax included
Quantity
Steel grade AISI304
Surface finish Satin
Screw size M10
Screw length 50mm

Set screw M10x50 mm, headless, fully threaded, stainless steel, type of steel – A2.

The Strofix set screw M10×50 is an AISI 304 (A2) stainless-steel headless threaded stud with an M10 thread along its full 50 mm length. It has a satin finish.

A set screw has no head – it is threaded at both ends, so it joins two threaded parts or turns an M10 threaded hole into a protruding stud. One end is screwed into an M10 anchor sleeve, threaded insert or tapped hole; the protruding end receives a washer and nut that clamp the component in place. This differs from the M10×45 DIN 912 screw, whose socket head bears directly on the component. The M10 thread matches Strofix base plates with Ø11 mm bolt holes, such as the Ø100 mm round tube base plate and the 100 × 100 mm square tube base plates. AISI 304 (A2 grade) stainless steel provides corrosion resistance for both interior and exterior installations.

This SKU is a single fixed configuration – M10×50 mm, AISI 304 only.

Use cases:

  • Stud connection into an M10 anchor sleeve, with the component secured by washer and nut
  • Turning an M10 threaded hole or insert into a protruding stud for base plates and brackets
  • Joining two M10 internally threaded parts
  • Exposed stud ends finished with an M10 cup nut
  • Any M10 connection requiring a short headless stud in AISI 304

FAQ:

What are the set screw dimensions?

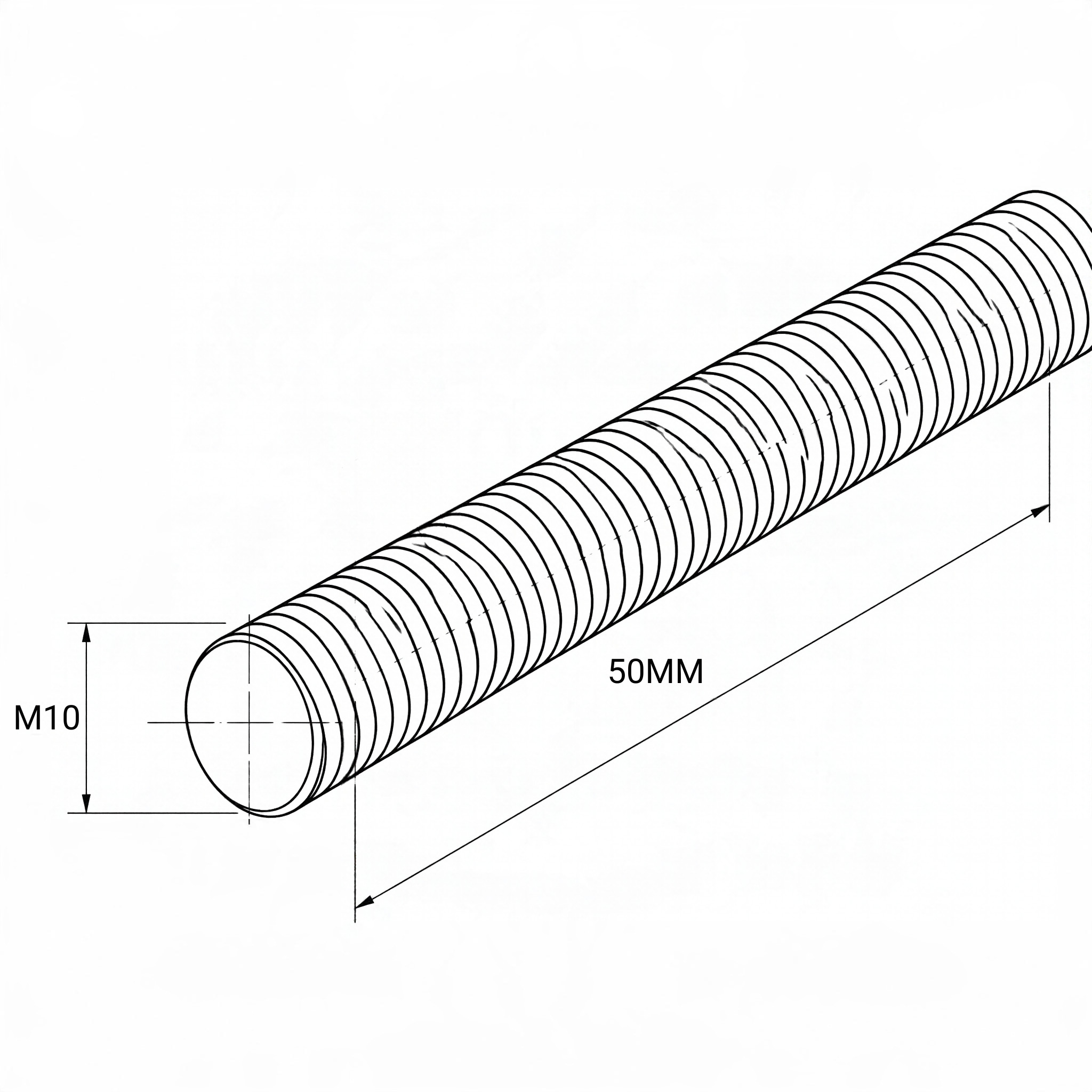

The set screw has an M10 thread and 50 mm overall length (M10×50 mm). It is threaded along its full length and has no head.

How does it differ from the M10×45 screw?

The M10×45 is a DIN 912 hex socket cap screw – its head clamps the component and it is tightened with an Allen key. The M10×50 set screw has no head: one end goes into a threaded hole or anchor sleeve, the other carries a washer and nut. Choose the set screw when the component must be fitted over a stud and secured from the front with a nut.

How is a headless set screw tightened?

Screw it into the threaded hole by hand, then lock two M10 nuts against each other on the protruding end and turn the upper nut with a spanner. Remove the nuts, fit the component, washer and nut, and tighten.

Which nuts and washers fit?

Any M10 nut and washer. Strofix supplies an M10 washer and an M10 cup nut in AISI 304, so the whole connection stays in A2 stainless steel.

What steel grade is used?

The set screw is AISI 304, designated A2 under the European stainless-steel fastener classification, with a satin finish.

About Anchors & Screws

Anchors and screws fix glass adaptors, French balcony holders, brackets, railing posts and other hardware to the building – to concrete, masonry, insulated façades or timber.

The range covers S235 steel anchor rods (Ø16 mm with an internal M8 and Ø20 mm with an internal M10 thread, 220–400 mm) for chemical anchoring, a zinc-plated anchor sleeve M10 × 80 mm, a PVC spacer sleeve for fixings through insulation, AISI 304 threaded rods and studs (M10 × 200 threaded rod, M10 × 50 set screw, M8 × 60 and M10 × 100 double threads for timber), DIN 912 screws, DIN 917 cup nuts, flat washers, and wood screws Ø8 and Ø10 mm in AISI 316 or coated carbon steel in RAL colours.

The right fastener depends on the substrate, the façade build-up, the thread size of the fitting and the load.
