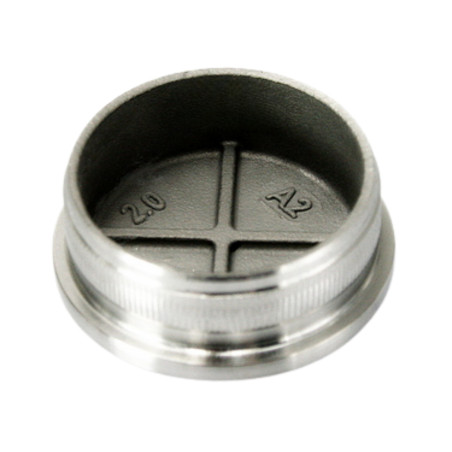

Flat-end cap 42,4 x 2mm, Satin

The Strofix flat-end cap is an AISI 304 stainless-steel ultra-low-profile press-fit cap designed to close the open end of Ø42.4 × 2 mm or 48 × 3 mm railing tubes. The Ø42.4 × 2 variant has a 2 mm height; the 48 × 3 variant has a 3 mm height. Available in satin or polished finish (polish for Ø42.4 × 2 only). The cap is installed by driving it into the tube bore (elements for driving included).

The press-fit flat-end cap is driven into the open end of the tube, creating an almost flush closure with an extremely low profile. The 2–3 mm height means the cap sits nearly level with the tube face, making it virtually invisible once installed. This differs from adhesive-fixed flat-end caps and domed end caps, which protrude visibly from the tube end. The two tube size options cover both the standard Ø42.4 mm railing pipe and the 48 mm pipe used in certain Strofix railing configurations. AISI 304 stainless steel is suitable for standard interior and exterior installations.

The satin finish matches other Strofix satin-finished components. The polished finish (Ø42.4 × 2 only) provides a mirror-like appearance.

Use cases:

• Ultra-flush closure of Ø42.4 mm handrail and railing post tube ends
• Virtually invisible end finishing on railing tubes where a protruding cap is not desired
• Press-fit tube end closure for 48 × 3 mm railing pipes
• Minimalist railing installations where end caps should not be visually apparent
• Sealing cut tube ends against moisture and debris with a flush-mounted cap

FAQ:

What tube sizes does this flat-end cap fit?

Two tube sizes are available: Ø42.4 × 2 mm and 48 × 3 mm. Select the correct tube size in the dropdown at order time.

What is the cap height?

The Ø42.4 × 2 variant has a 2 mm height (H = 2 mm). The 48 × 3 variant has a 3 mm height (H = 3 mm). These are the lowest-profile end caps in the Strofix range — the cap sits nearly flush with the tube face.

How is this cap installed?

The cap is installed by driving (pressing or tapping) it into the tube bore. This is a press-fit attachment — no adhesive or screws are used. The description states "elements for driving" are included.

How does this differ from adhesive flat-end caps?

Adhesive flat-end caps are glued in place and have a taller profile (e.g., H = 5 mm for the 40 × 40 mm caps). This press-fit cap is driven into the tube bore and sits at just 2–3 mm, creating a nearly invisible closure. Choose the press-fit cap when an ultra-flush profile is required.

Which finish options are available for each tube size?

The Ø42.4 × 2 variant is available in satin or polished finish. The 48 × 3 variant is available in satin only — polished finish is not offered for this tube size.

What steel grade is used?

The flat-end cap is manufactured from AISI 304 stainless steel. AISI 304 is suitable for standard interior and exterior installations.

About End Caps

An end cap is a stainless-steel closure piece that plugs into or fits over the open end of a railing tube, post or solid bar, sealing it against moisture ingress and giving the termination a clean, finished appearance. Without an end cap, the cut tube end is exposed — visually unfinished and prone to collecting water and debris inside the hollow section.

Strofix supplies 13 end cap products in three profile families: caps for Ø42.4 mm round pipe (available in flat, convex and ellipsoid shapes), caps for 40×40 mm flat square tube (flat profile), and caps for Ø10 and Ø12 mm solid crossbar rods.

All are in AISI 304 stainless steel with a satin finish, with AISI 316 and polished options available on selected variants. The correct end cap depends on the tube or rod profile it will close, and the desired cap shape.
