End cap for weld 40x40x4mm, hole ø8mm, RAW
€1.14 Tax excluded
€1.38 Tax included
€1.38 Tax included
Tax included
Quantity
| Steel grade | AISI304 |
|---|---|
| Surface finish | Raw surface |
| Mounting surface type | Flat |
| Tube size | 40x40mm |
| End cap installation | Weld |
| End cap surface type | Flat |
| End cap surface thickness | 4mm |

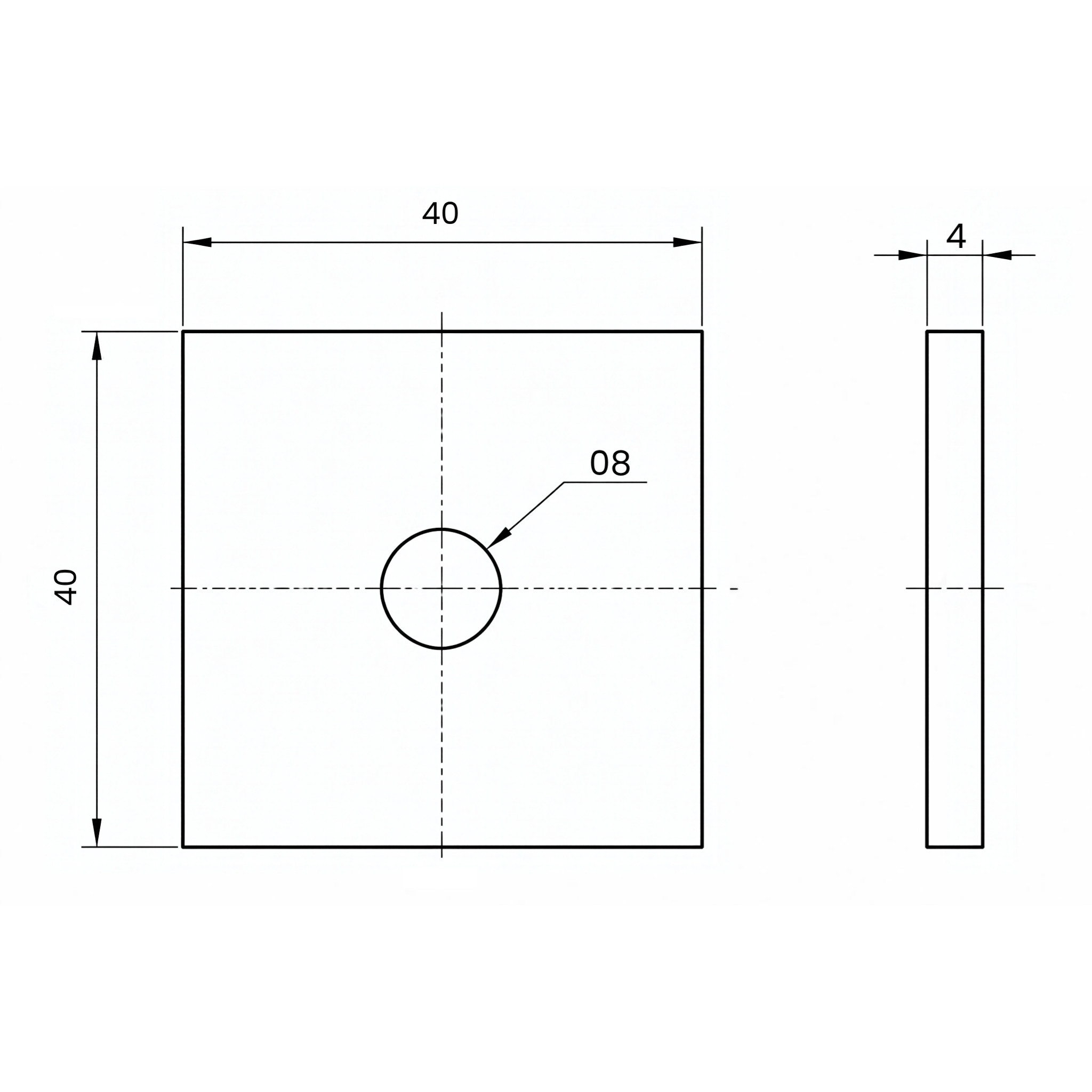

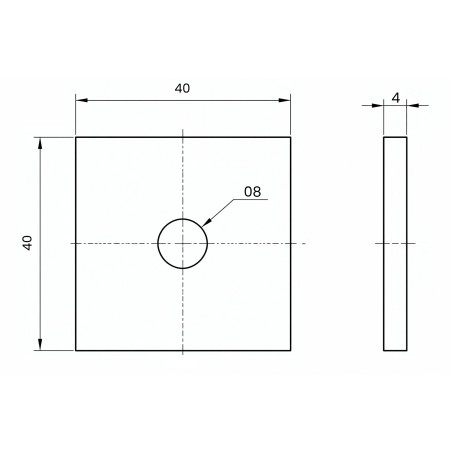

The Strofix end cap for weld 40×40×4mm, hole ø8mm, RAW is an AISI 304 stainless-steel closure plate for the end of a 40 × 40 mm square railing tube. The 4 mm plate has a central Ø8 mm hole and is welded over the tube end, sealing the open section while allowing a bolt or rod to pass through the hole. Supplied with a raw (unfinished) surface.
This weld-on end cap closes the open end of a 40 × 40 mm square tube and is fixed by welding rather than press-fitting or bonding, giving a permanent, flush closure for fabricated steel assemblies. The central Ø8 mm hole lets a fixing bolt or threaded rod pass through – for example, to secure the cap end to a structure or to mount a fitting. The raw surface is intended to be ground and finished or coated on site after welding.
Use cases:
- Welded closure of a 40 × 40 mm square railing tube end
- Permanent flush end closure in fabricated steel assemblies
- Tube-end cap with a Ø8 mm hole for a through-bolt or threaded rod
- Raw-surface cap for grinding and finishing on site after welding
- Stainless-steel weld-on end cap for square railing tube
FAQ
How is this end cap fixed?
By welding. It is welded over the end of a 40 × 40 mm square tube, giving a permanent closure – unlike the press-fit or threaded caps, which insert into the tube.
What is the Ø8 mm hole for?
It allows a bolt or threaded rod to pass through the cap – for example, to secure the tube end to a structure or to mount a fitting.
What tube does it fit?
A 40 × 40 mm square tube.
Why is the surface raw?
The raw finish is intended to be ground and finished or coated on site after welding, to match the surrounding metalwork.
What steel grade is used?
AISI 304 stainless steel, raw surface.
About End Caps
An end cap closes the open end of a railing tube, post or crossbar rod, keeping water and dirt out and giving the end a clean, finished look.
Strofix supplies 31 end caps in three families: for Ø42.4 mm tube (flat, convex, ellipsoid, 90° elbow and weld-in caps), for 40 × 40 mm profile (flat and weld-in caps) and for Ø10 and Ø12 mm crossbar rods (15–30 mm high, in flat, ball and droplet shapes).
Most are AISI 304 satin; polished versions, raw weld-in caps and AISI 316 on selected caps complete the range. The correct end cap depends on the profile it closes, the shape and whether it is fitted or welded.
Strofix quality
Strofix designs and supplies stainless-steel fastening systems for architectural glass, including glass adaptors, railing components, handrails, and structural fixings. We also serve architects, installers, and building contractors on residential and commercial projects.
The products we sell are designed by us, and manufactured under strict quality guidelines so that we can be sure our customers are getting exactly what they ordered.
All of our products meet EU quality standards. Our shipping partners provide convenient delivery times. For more on our return & warranty policy read here. Secure payments are provided by MakeCommerce.
