Cover for pipe Ø42.4 105mm, two parts, Satin

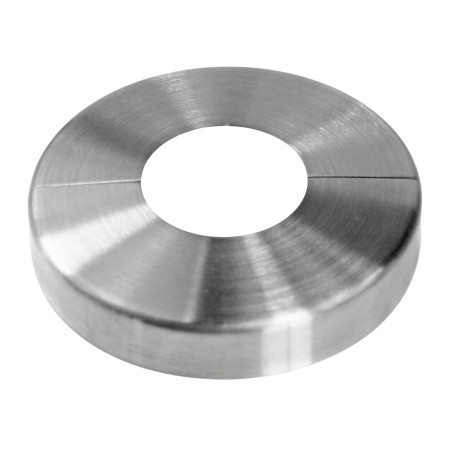

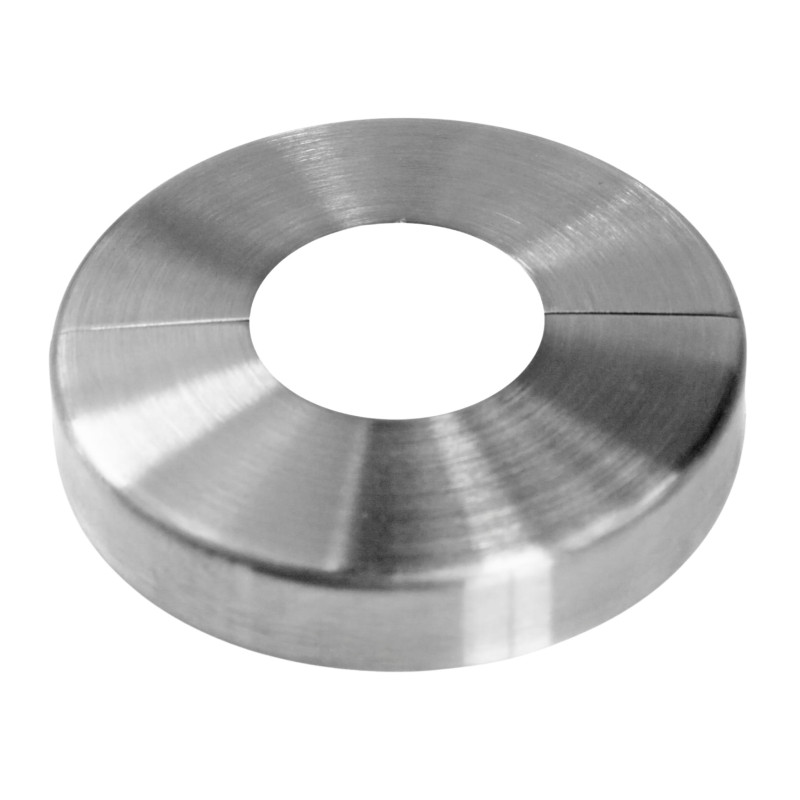

The Strofix cover for pipe Ø42.4, 105mm, two parts, Satin is an AISI 316 stainless-steel decorative base cover for a Ø42.4 mm round railing post, made in two parts. The Ø105 mm cover is 17 mm high and assembles around the post base from two halves, concealing the base plate, anchor bolts, and raw fixing beneath a clean, finished disc. Satin finish, marine-grade AISI 316.

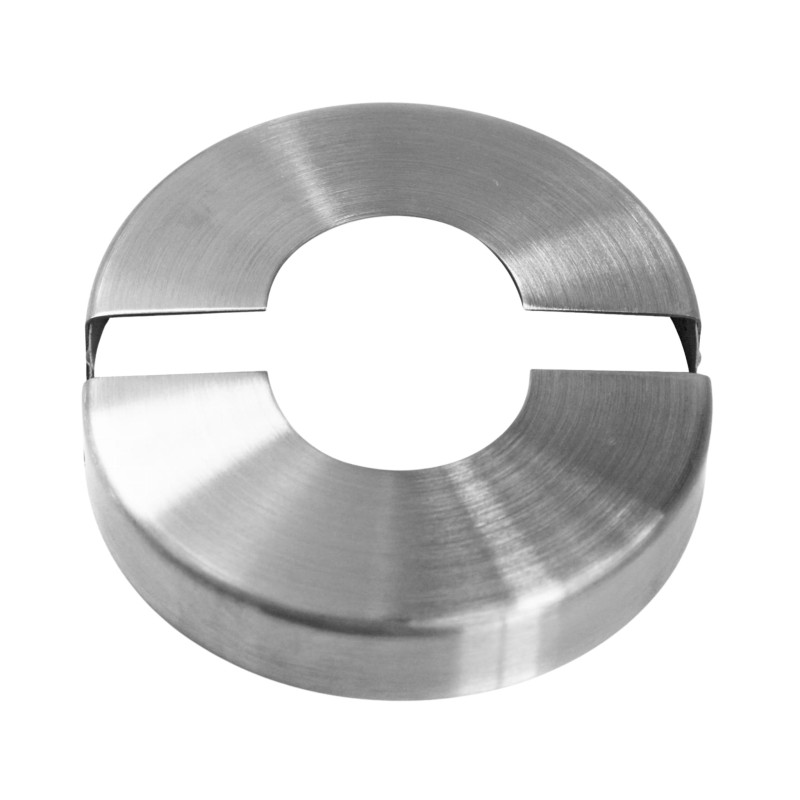

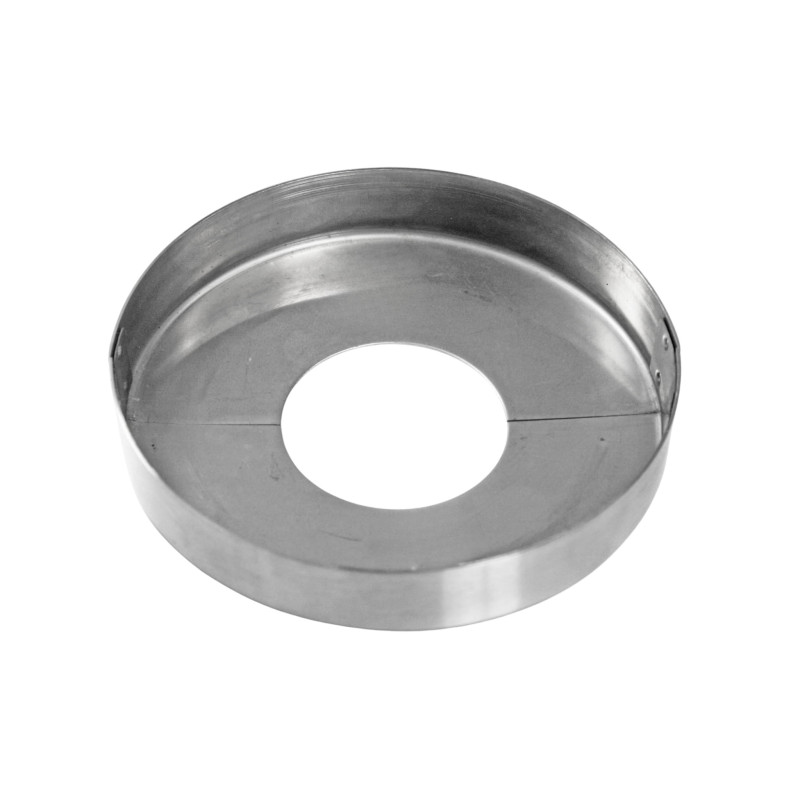

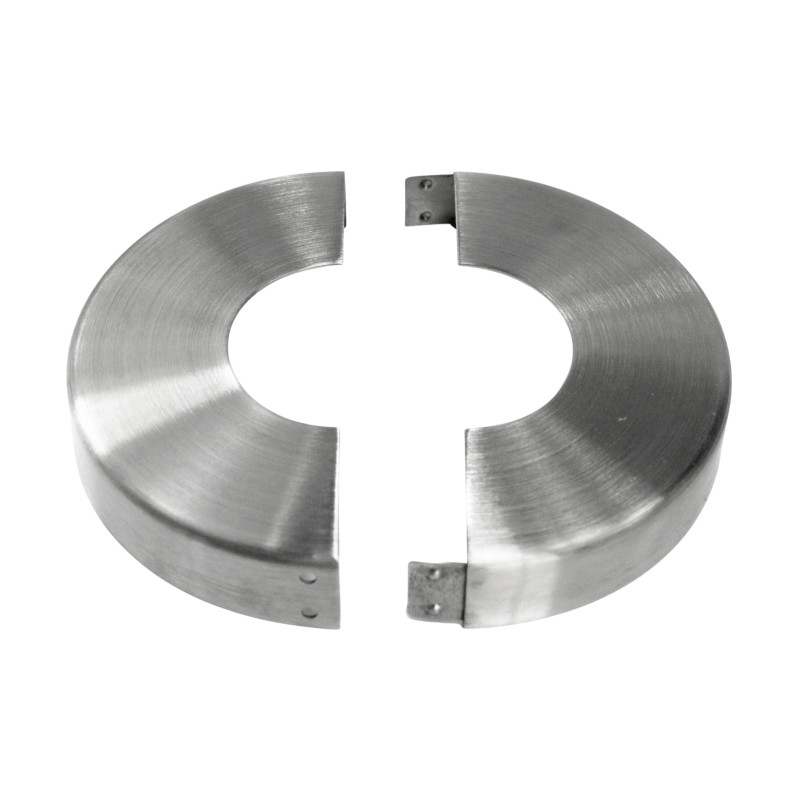

Unlike the one-piece covers, which slide over the post tube from the open end, this two-part cover clips together around the post in place. This makes it ideal for retrofitting to posts that are already installed and capped — where a one-piece cover could not be slid on — and for replacing a damaged cover without dismantling the railing. The two-part construction and marine-grade AISI 316 explain the higher price relative to the one-piece Ø105 covers. The Ø105 mm diameter conceals larger base plates such as the D100.

Use cases:

• Retrofitting a base cover to an already-installed Ø42.4 mm post
• Concealing the base plate where a one-piece cover cannot be slid on
• Replacing a damaged cover without dismantling the railing
• Marine-grade AISI 316 base cover for coastal installations
• Concealing larger D100 base plates on round post railings

FAQ

What makes this a two-part cover?

It is made in two halves that assemble around the post base in place, rather than sliding over the post end like a one-piece cover. This allows it to be fitted to posts that are already installed and capped.

When would I choose the two-part cover?

For retrofit — when the post is already installed and a one-piece cover cannot be slid on — or to replace a damaged cover without dismantling the railing.

What post does it fit?

A Ø42.4 mm round post tube.

What are the dimensions and grade?

Ø105 mm diameter, 17 mm high, in marine-grade AISI 316 stainless steel.

Why is it more expensive than the one-piece Ø105 cover?

The two-part construction and the marine-grade AISI 316 steel both add to the cost relative to the one-piece covers.

What finish is it supplied in?

Satin.

About Covers

A cover is a stainless-steel decorative plate that fits around the base of a railing post where it meets the floor, deck or fascia, concealing the anchor bolt, base plate and raw fixing beneath a clean, finished disc or square. It slides over the post tube before or after installation and sits flat against the mounting surface, giving the post base a professional appearance.

Strofix supplies base covers in seven variants — round covers in Ø85, Ø95 and Ø105 mm diameters for Ø42.4 and Ø48.3 mm round pipe posts, and square covers in 85×85, 90×90, 105×105 and 108×108 mm for flat-sided posts — in AISI 304 or AISI 316 stainless steel with satin or polished finishes and heights of 18 or 20 mm.

The correct cover depends on post shape and diameter, the desired cover size and the required steel grade.
