Threaded rod M10x200, AISI304

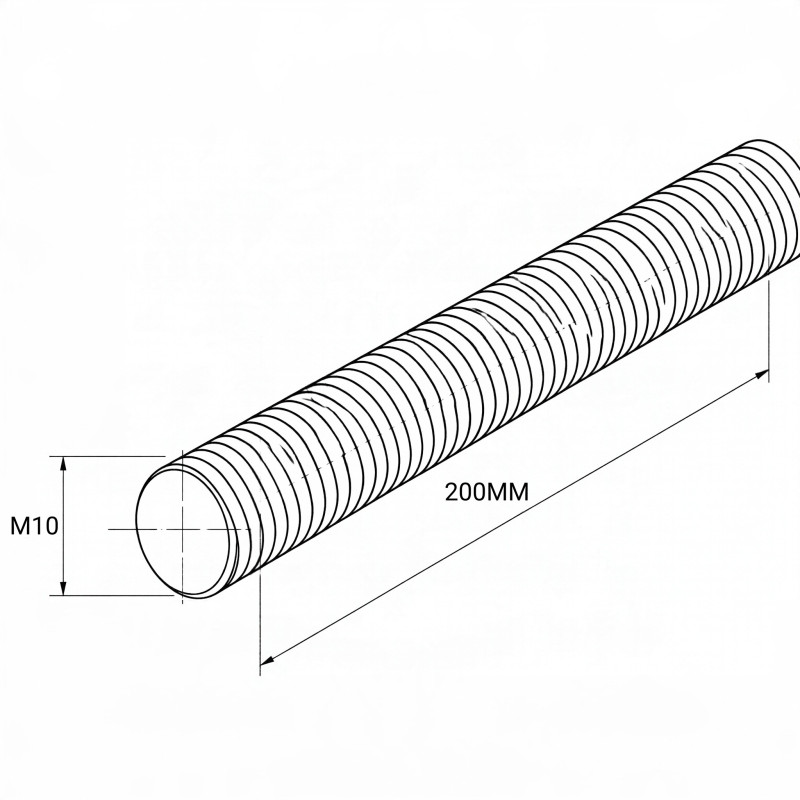

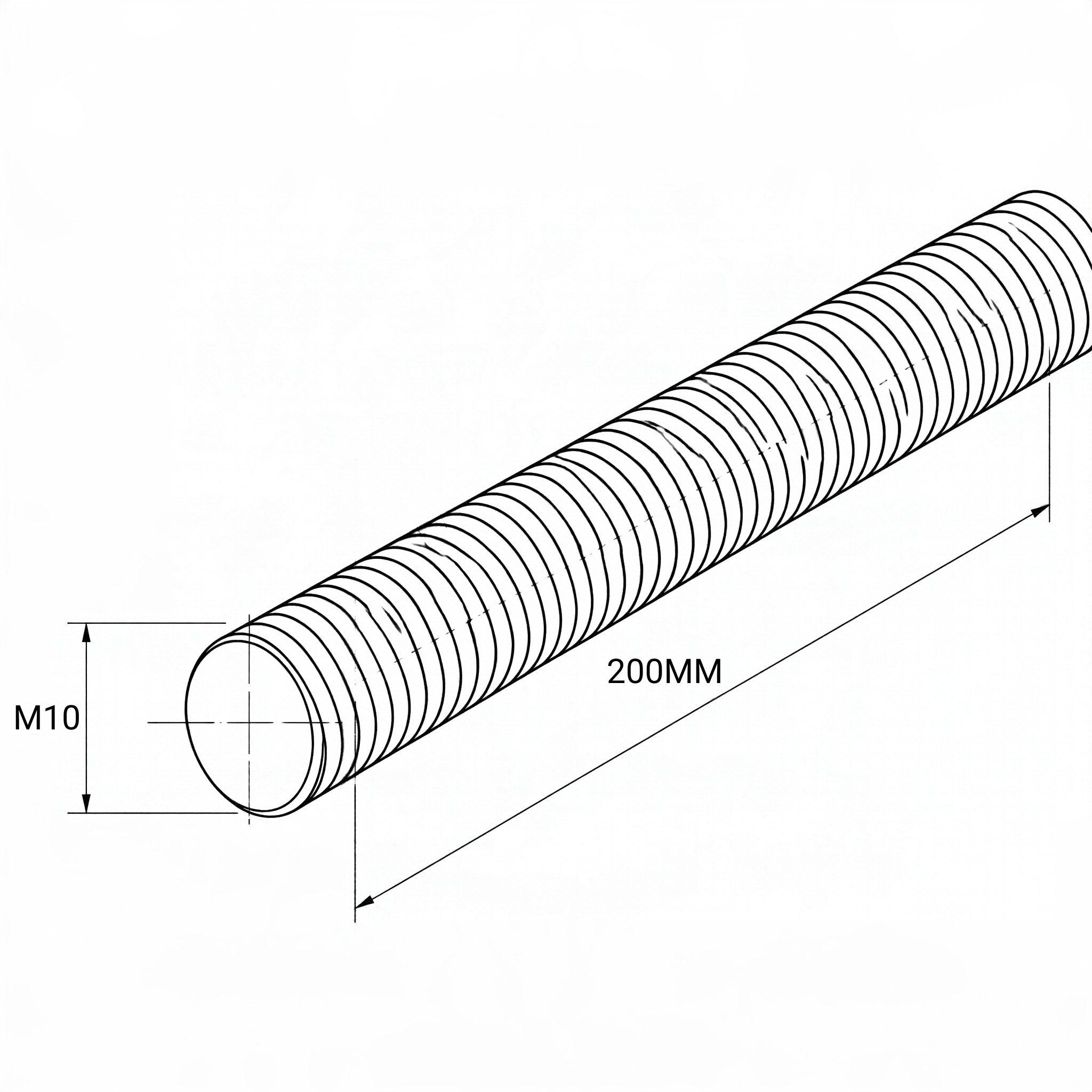

Threaded rod M10x200 mm, fully threaded, stainless steel, type of steel – A2.

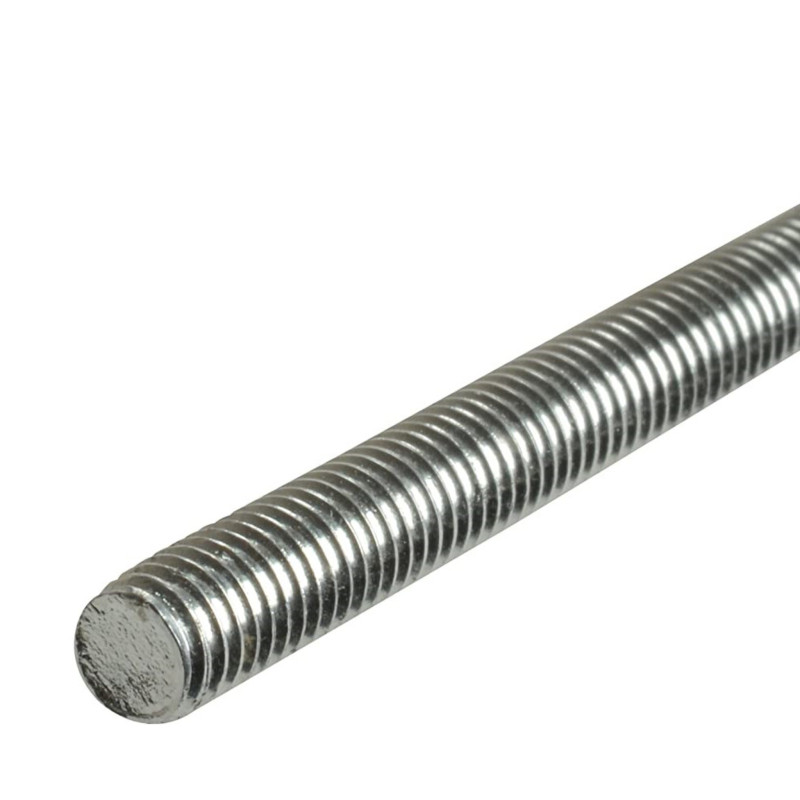

The Strofix threaded rod M10×200 is an AISI 304 (A2) stainless-steel rod with an M10 metric thread along its full 200 mm length. It has a satin finish.

A threaded rod has no head and no wood-screw end – it is M10 machine thread end to end, so a nut can be run on anywhere along its length. One end is set into the substrate – bonded with chemical anchor mortar in concrete or masonry, or screwed into an M10 anchor sleeve – and the protruding end receives a washer and nut that clamp the railing base plate, bracket or holder. The 200 mm length leaves room to bridge an insulation layer through a spacer tube, and the rod can be cut shorter on site. The M10 thread matches Strofix base plates with Ø11 mm bolt holes, such as the Ø100 mm round tube base plate and the 100 × 100 mm square tube base plates. AISI 304 (A2 grade) stainless steel provides corrosion resistance for both interior and exterior installations.

This SKU is a single fixed configuration – M10×200 mm, AISI 304 only.

Use cases:

• Chemical anchoring of railing post base plates and brackets in concrete and masonry
• Fixings through external insulation, combined with a spacer tube and chemical anchor mortar
• Stud connection into an M10 anchor sleeve in masonry without insulation
• Cutting to the exact stud length needed on site
• Any M10 connection requiring a long, fully threaded stud in AISI 304

FAQ:

What are the threaded rod dimensions?

The rod has an M10 thread and 200 mm overall length (M10×200 mm). It is threaded along its full length.

How does it differ from the M10 L100 double thread?

The M10 L100 double thread has a coarse wood-screw end for timber and an M10 machine thread on the other end. The threaded rod is M10 machine thread along its full 200 mm, so it is set in concrete or masonry with chemical anchor mortar or an anchor sleeve. Choose the double thread for timber and the threaded rod for concrete and masonry.

Can the rod be cut to length?

Yes. Cut it with a hacksaw or an angle grinder, then run an M10 nut over the cut end to clean up the first threads before fitting.

Which nuts and washers fit?

Any M10 nut and washer. Strofix supplies an M10 washer and an M10 cup nut in AISI 304, so the whole connection stays in A2 stainless steel.

What steel grade is used?

The threaded rod is AISI 304, designated A2 under the European stainless-steel fastener classification, with a satin finish.

About Anchors & Screws

Anchors and screws are the mechanical fasteners that secure glass adaptors, canopy brackets, railing posts, French balcony holders and other architectural hardware to the building substrate. They transfer structural loads from the visible hardware into concrete, masonry, insulated façades or timber frames.

Strofix supplies 16 products in this category: steel anchors in four lengths (150, 220, 320 and 400 mm) with rod diameters of Ø16 and Ø20 mm, an anchor sleeve (M10 × 80 mm), a spacer tube (L = 100 mm), individual screws (M10 × 45), cup nuts (M10), washers, double stainless-steel threads (M8, 60 and 100 mm), a wood screw (Ø10 × 180 mm), and pre-matched screw-and-fastener sets for 1, 2, 3 or 4 glass canopy brackets – configurable for masonry without insulation, masonry with insulation and timber-frame construction.

Materials are AISI 304 stainless steel and S235 structural steel. The correct fastener depends on wall type, hardware product, bolt size and required embedment depth.
