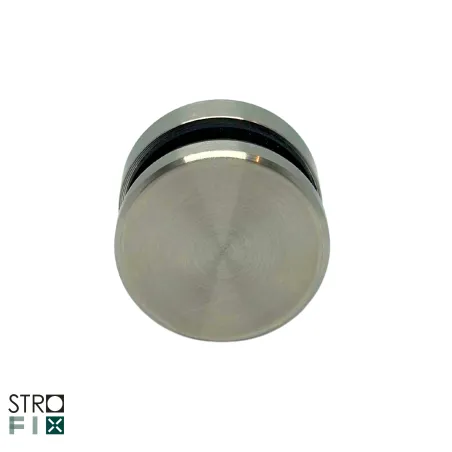

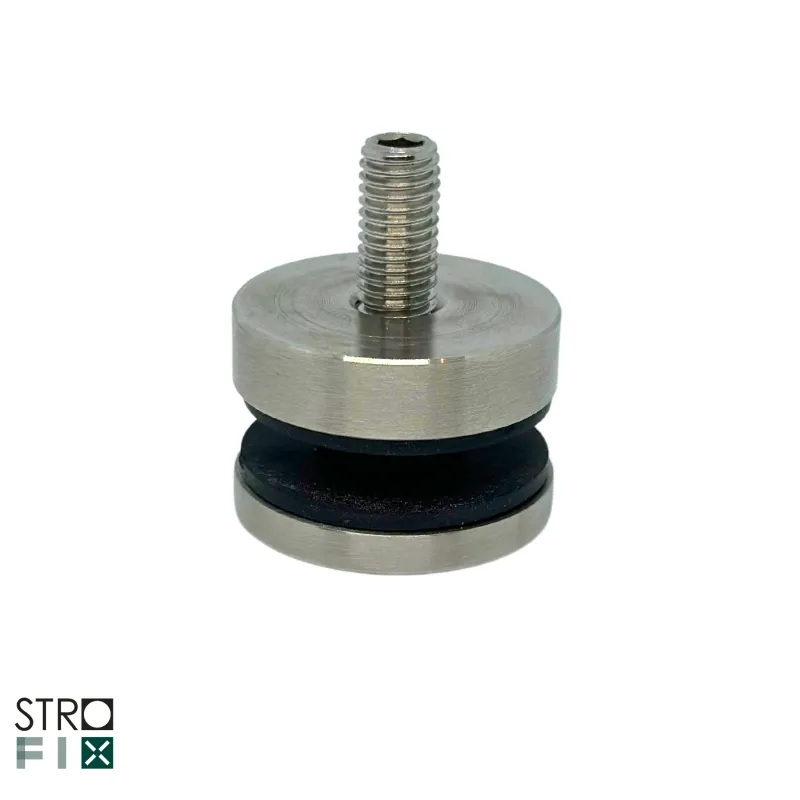

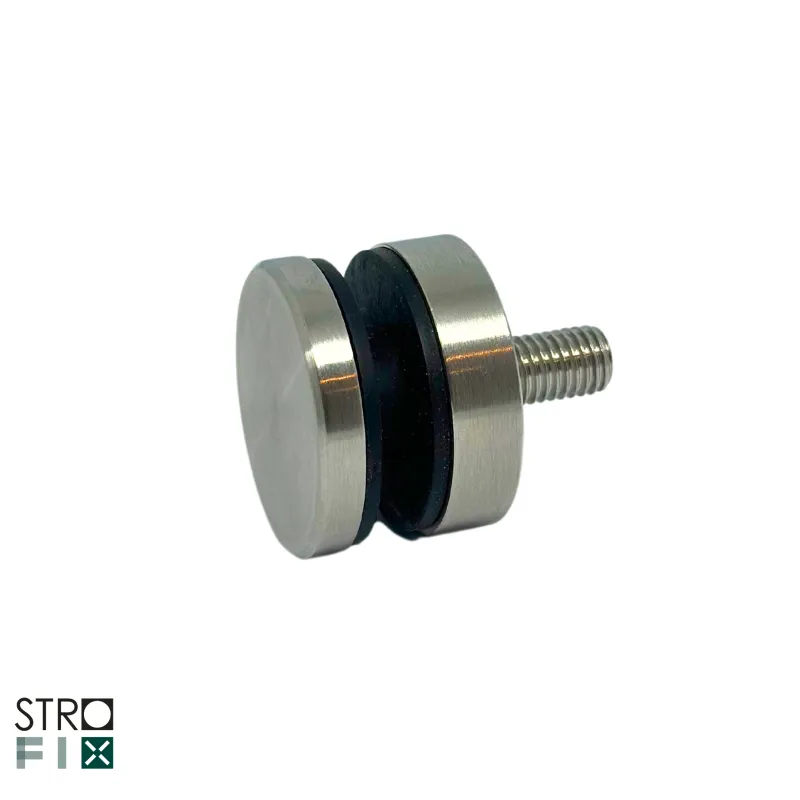

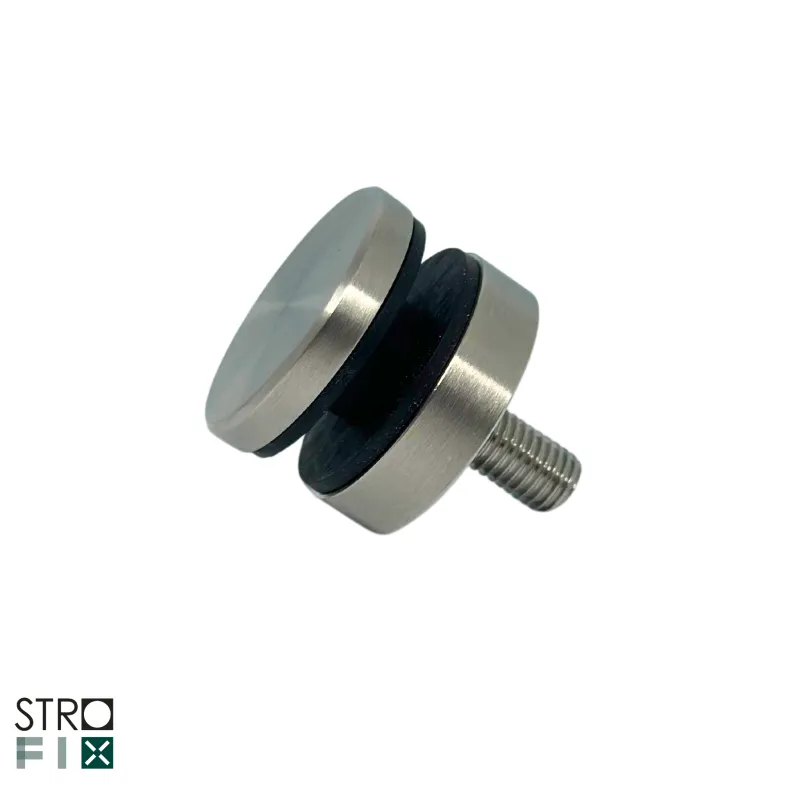

Glass adaptor D40, with inner thread, SS, satin
€12.68
Tax included
D, mm
Grade
Spacer t, mm
Quantity
Glass adaptor for flat surface, D40mm, spacer with inner thread M10, t=10-42mm, stainless steel AISI304, surface finish satin.

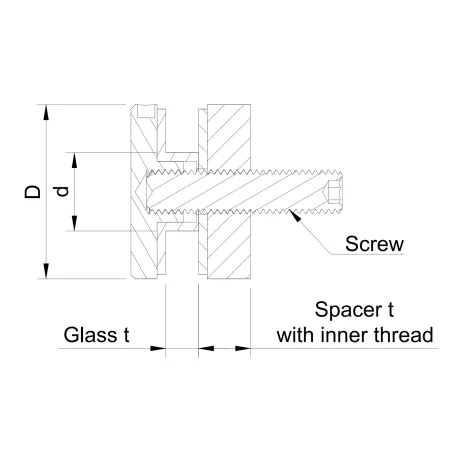

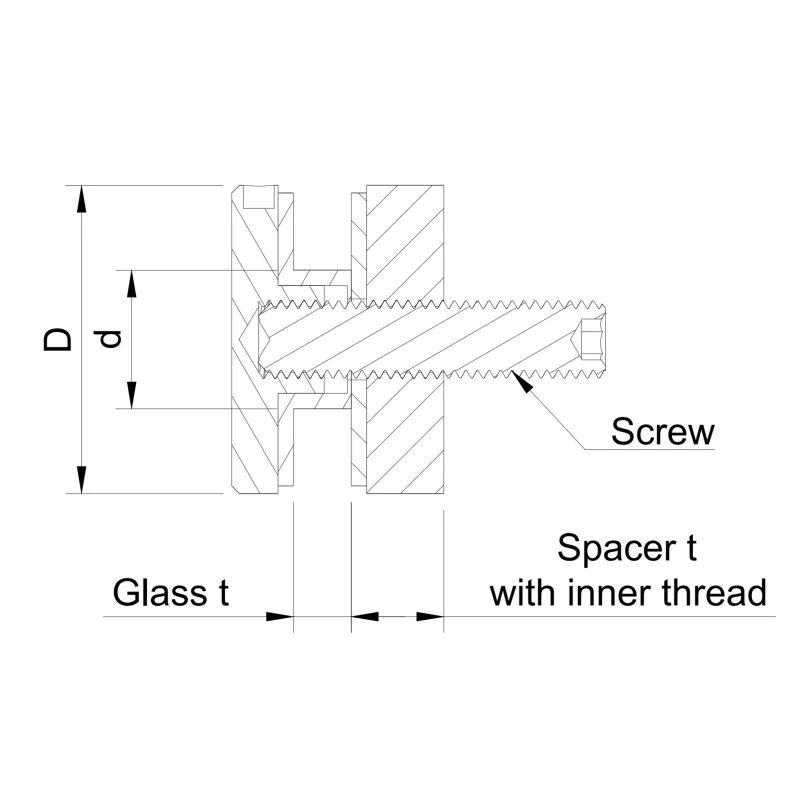

| D, mm | Spacer t, mm | Screw | Glass thickness, mm | Inner d, mm | Grade |
| 40 | 10 | M10 |
4-21,52 |
18 |
AISI304 |
| 40 | 12 | M10 | 8-17,52 | 18 | AISI304 |
| 40 | 22 | M10 | 4-21,52 | 18 | AISI304 |
| 40 | 32 | M10 | 4-21,52 | 18 | AISI304 |
| 40 | 42 | M10 | 4-21,52 | 18 | AISI304 |
